Overall Sequence

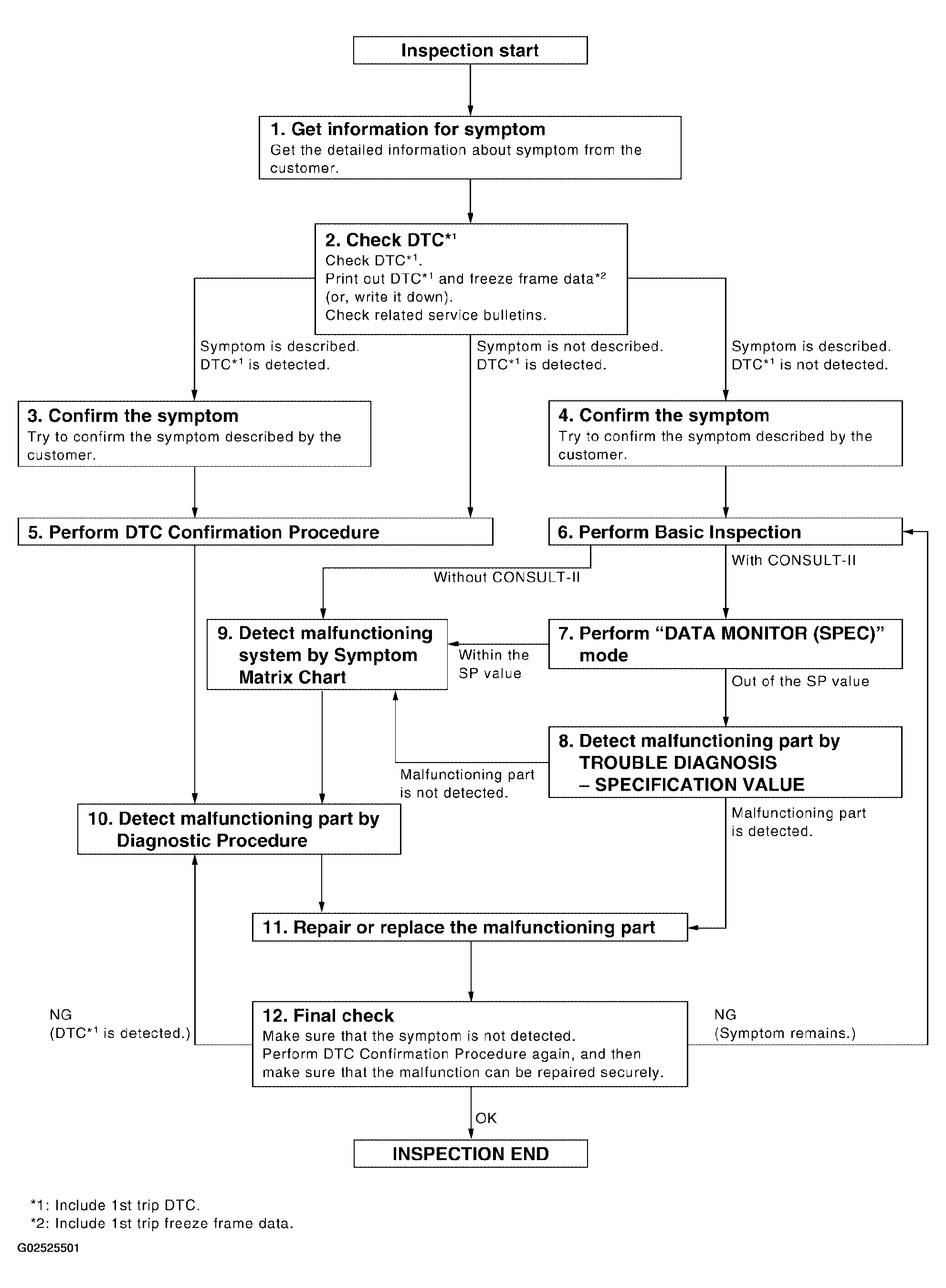

Fig 1: Problem Symptom Diagnostic Work Flow Chart

G02525501

Courtesy of NISSAN MOTOR CO., U.S.A.
