On Board Diagnosis Logic: Notes

This self-diagnosis has the one trip detection logic.

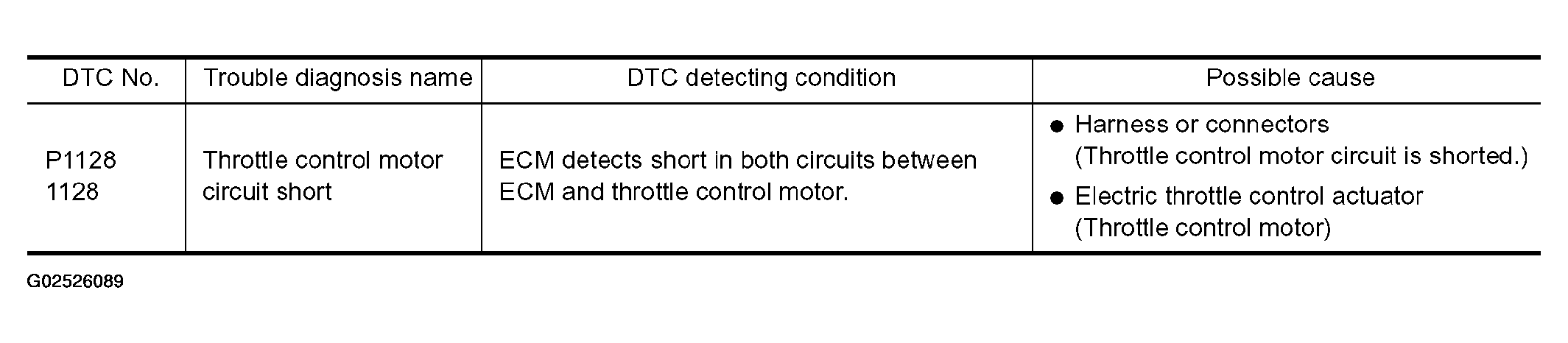

Fig 1: Diagnostic Chart
G02526089Courtesy of NISSAN MOTOR CO., U.S.A.
