Operations By Main Power Window And Door Lock/Unlock Switch

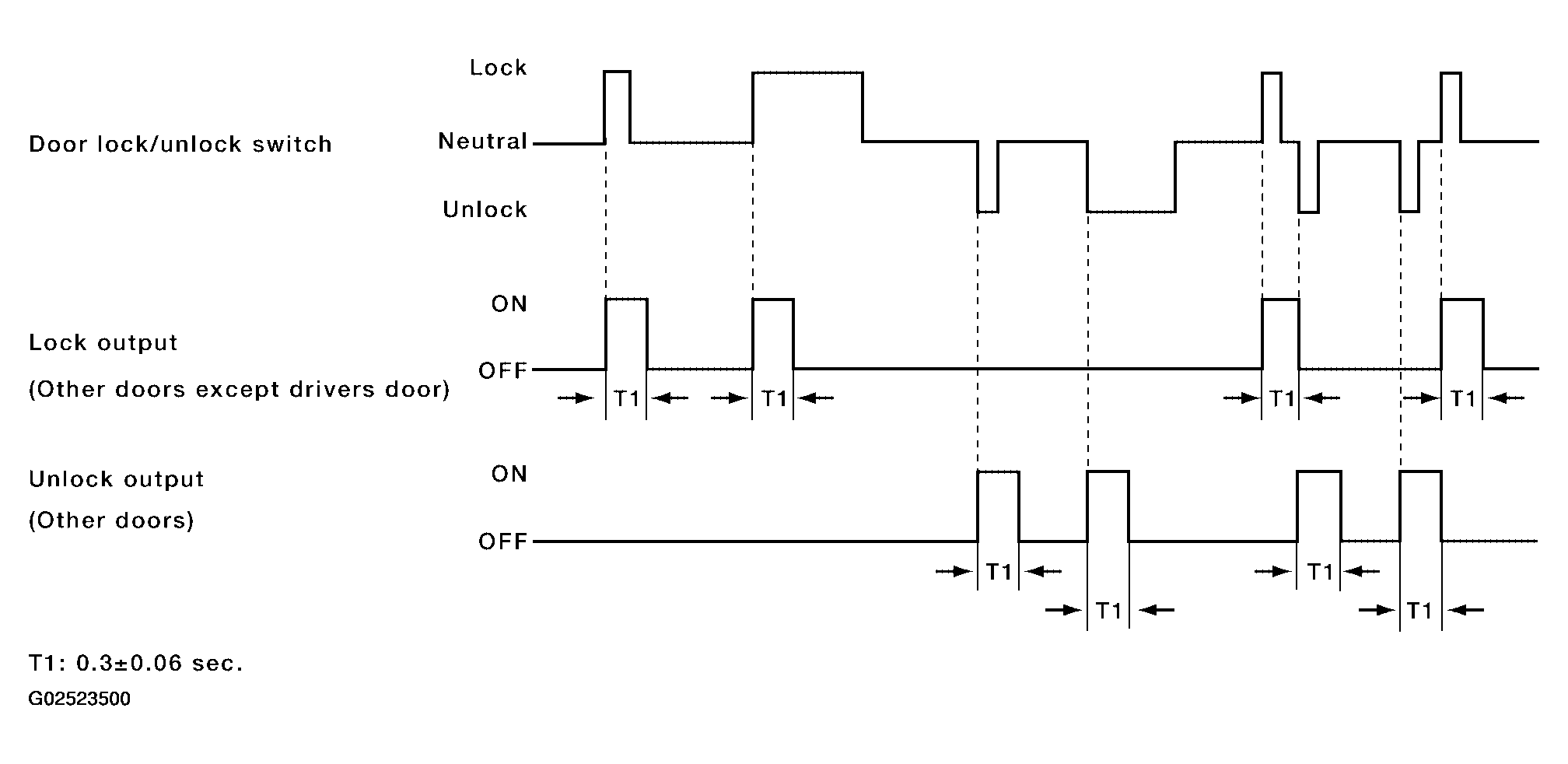

Fig 1: Time Chart - Operations By Main Power Window And Door Lock/Unlock Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
