Input/output Signal Chart

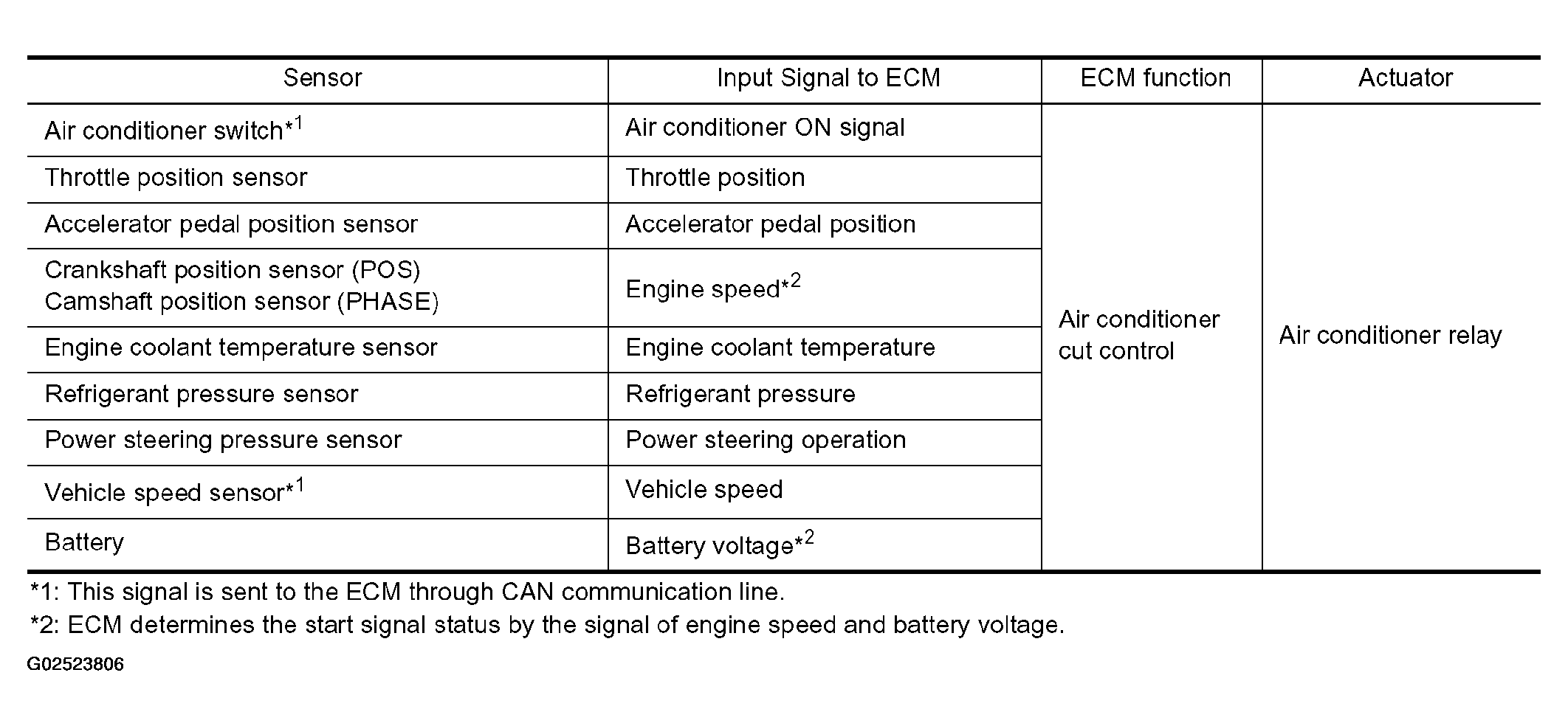

Fig 1: Air Conditioning Cut Control - Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
