Automatic Transaxle - Re4F04B
>>
Service Data And Specifications (SDS)
>>
Solenoid Valves
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Solenoid Valves

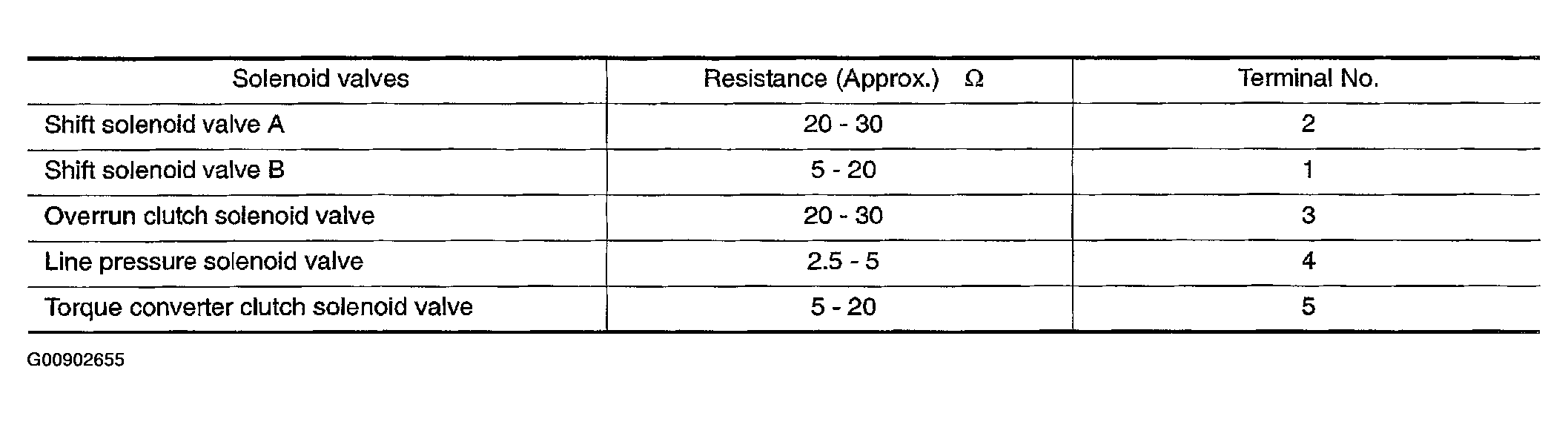

Fig 1: Solenoid Valves Resistance Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
