Automatic Transaxle - Re4F04B
>>
Overall System
>>
A/T Electrical Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
A/T Electrical Parts Location

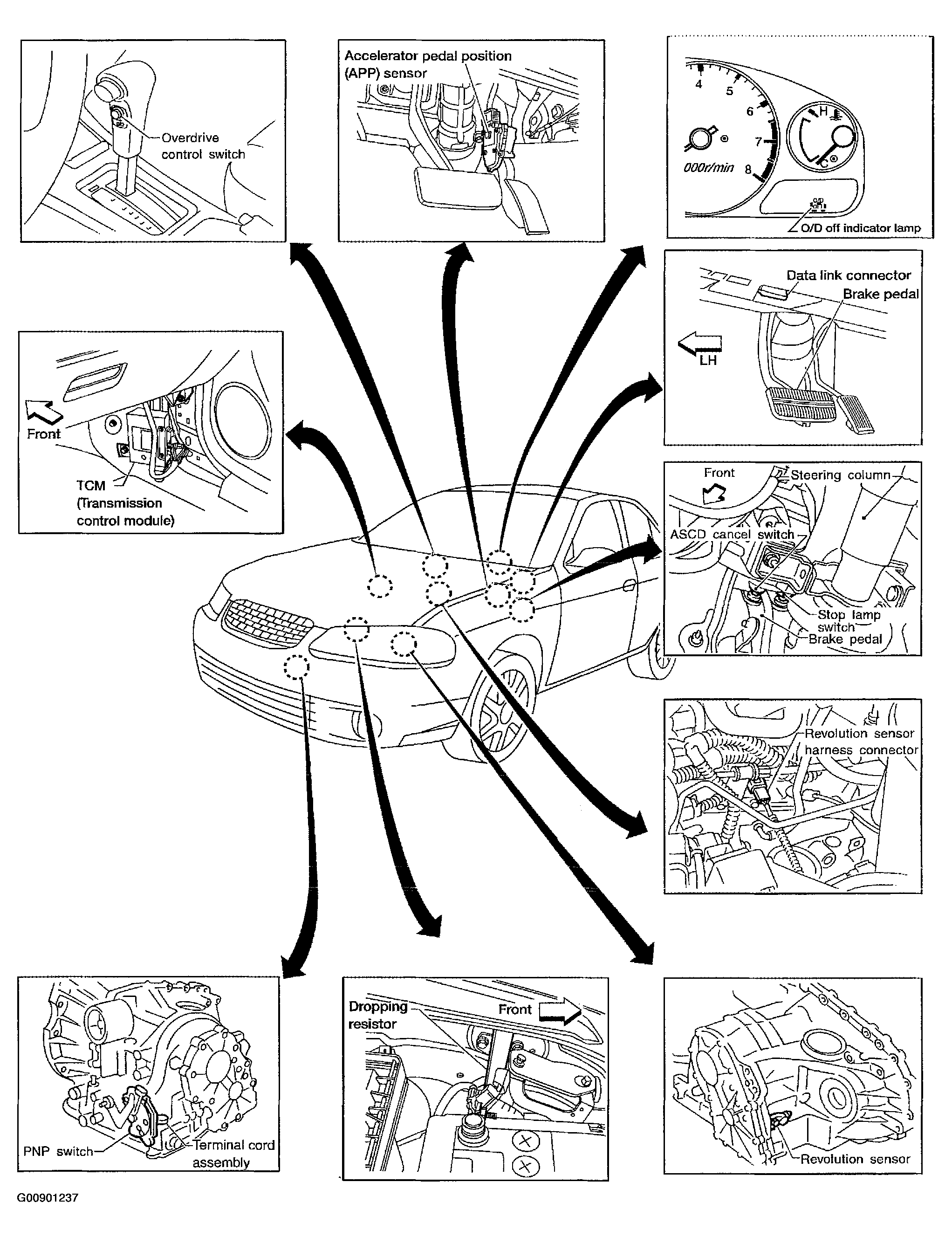

Fig 1: Identifying A/T Electrical Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
