On Board Diagnostic System Description
>>
Malfunction Indicator Lamp (MIL)
>>
DTC Work Support Mode
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC Work Support Mode

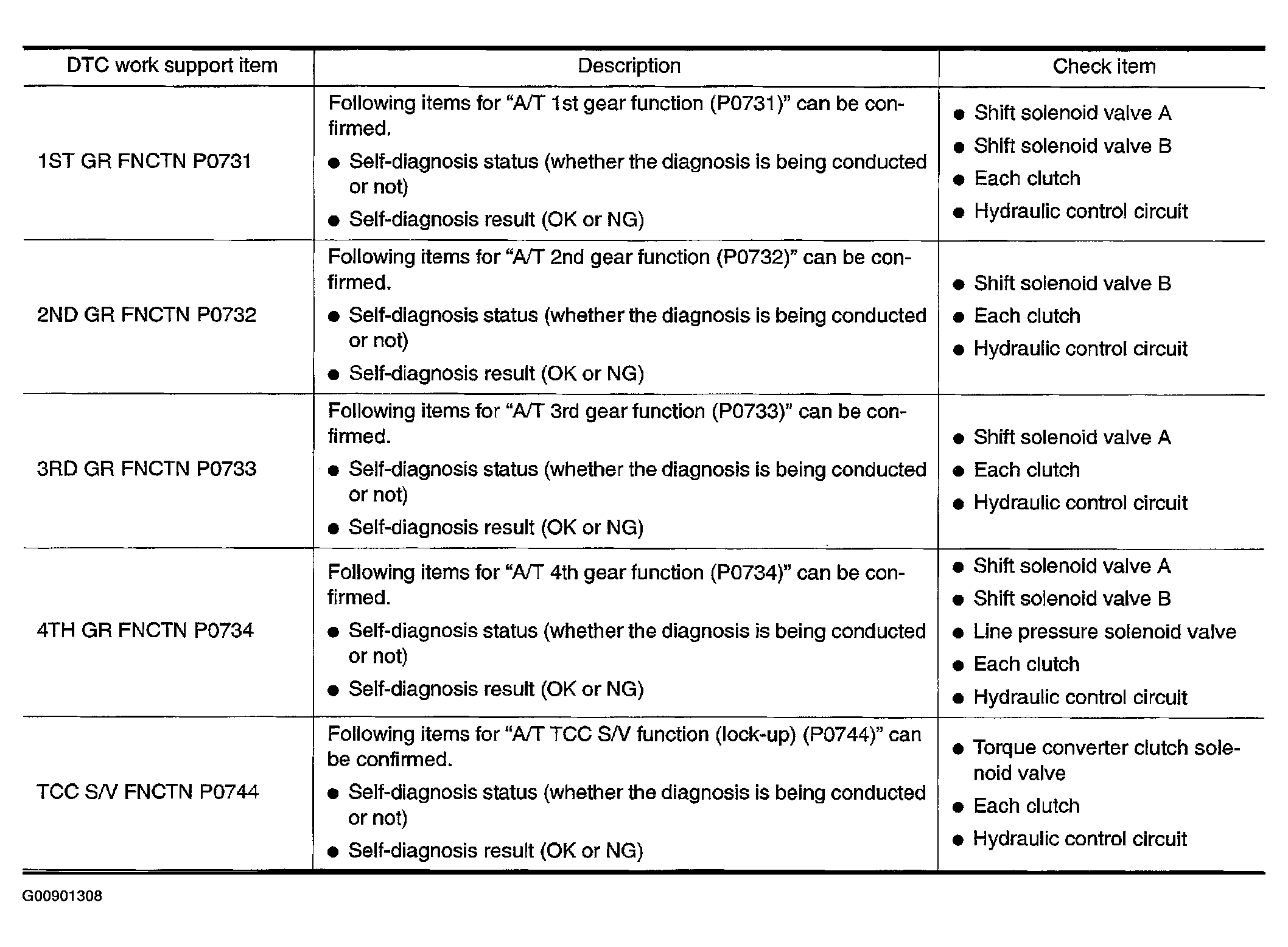

Fig 1: DTC Work Support Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
