Terminals Of Ecu

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. CONNECTORS

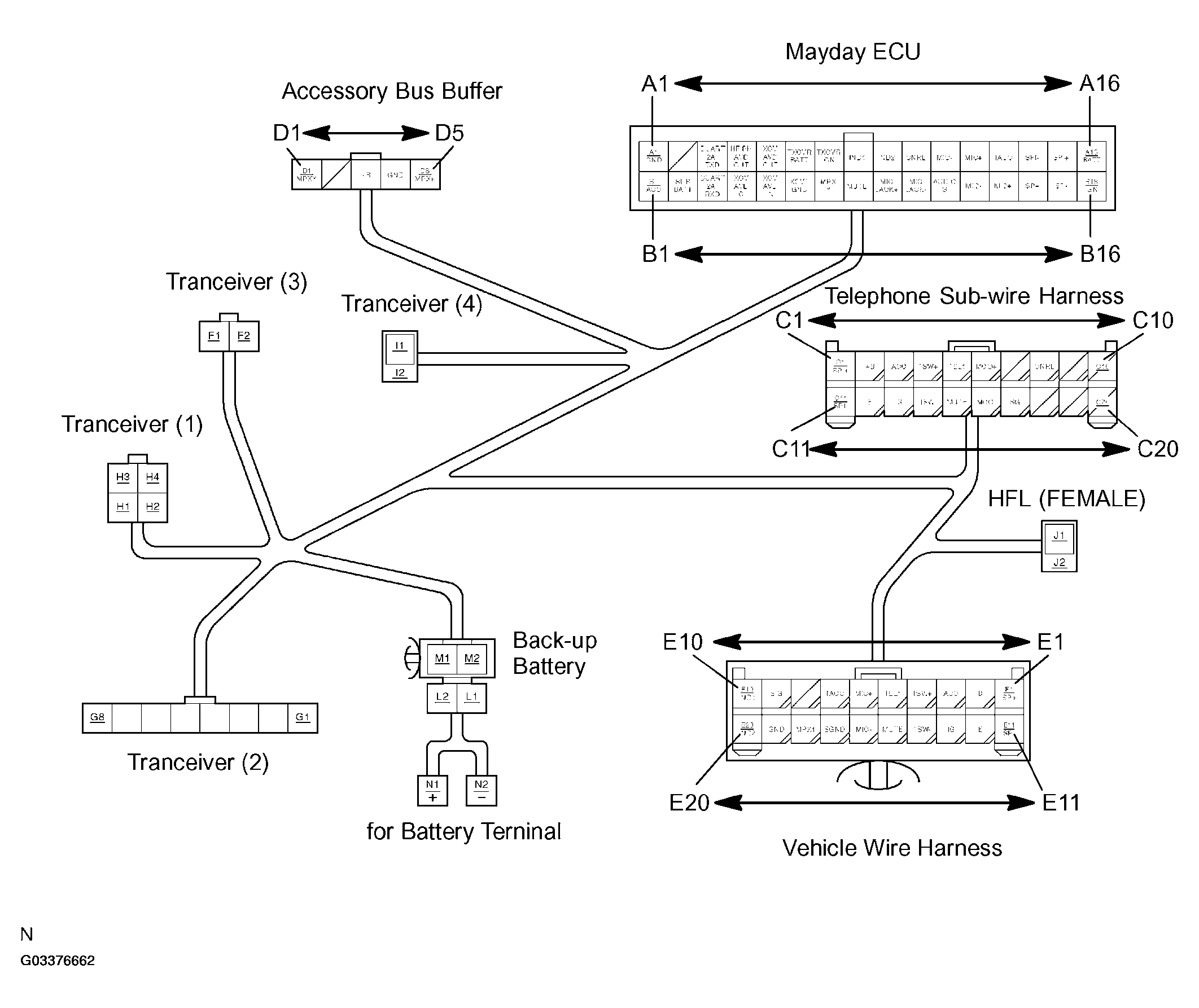

    Fig 1: Identifying Connectors
    G03376662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. WIRING DIAGRAMS

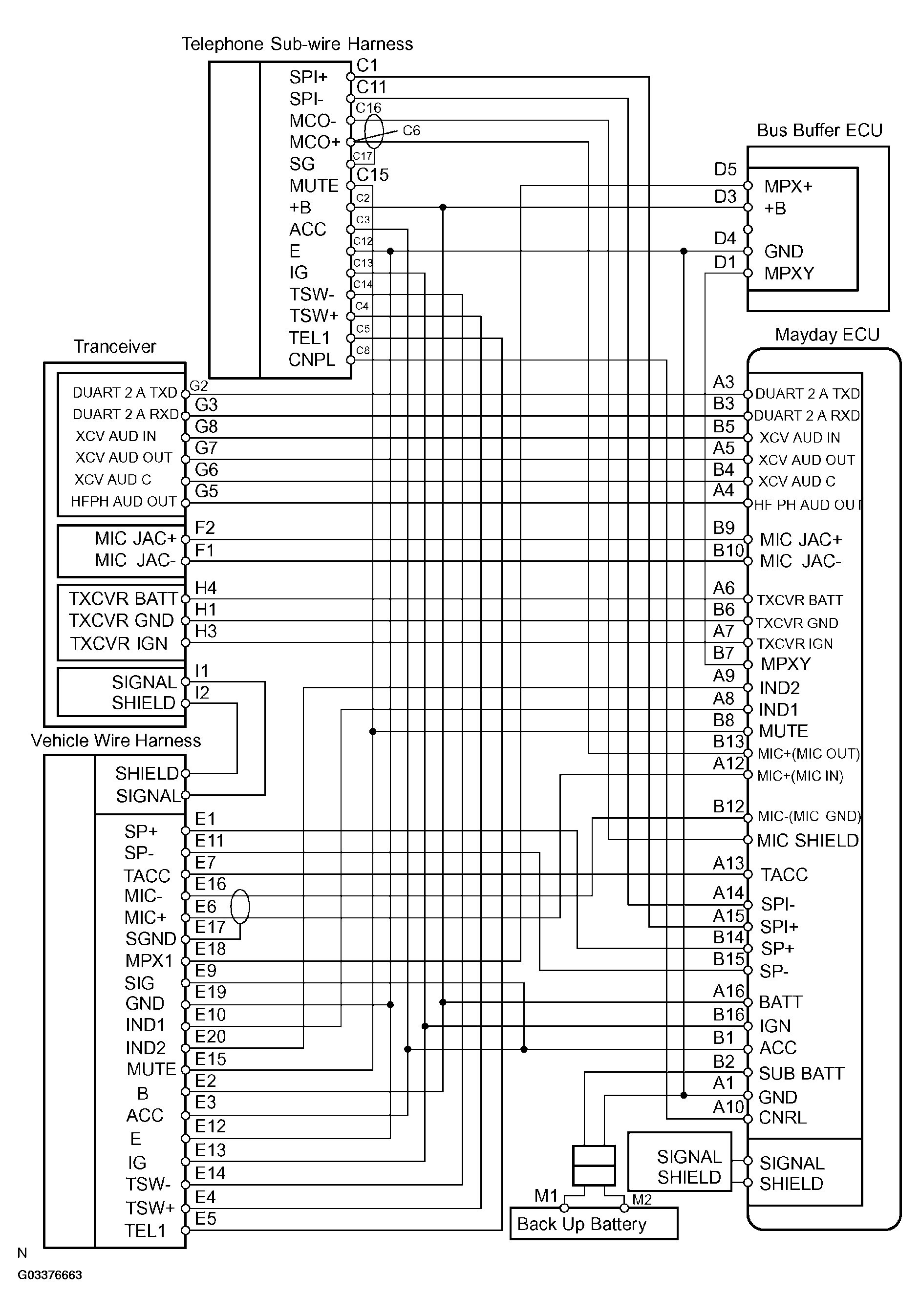

    Fig 2: Identifying Wiring Diagrams
    G03376663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
