Operation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "WIPERS" on the "SELECT TEST ITEM" screen.
  2. Touch "ACTIVE TEST" on the "SELECT DIAG MODE" screen.
  3. Touch item to be tested and check operation of the selected item.
  4. During the operation check, touching "BACK" deactivates the operation.

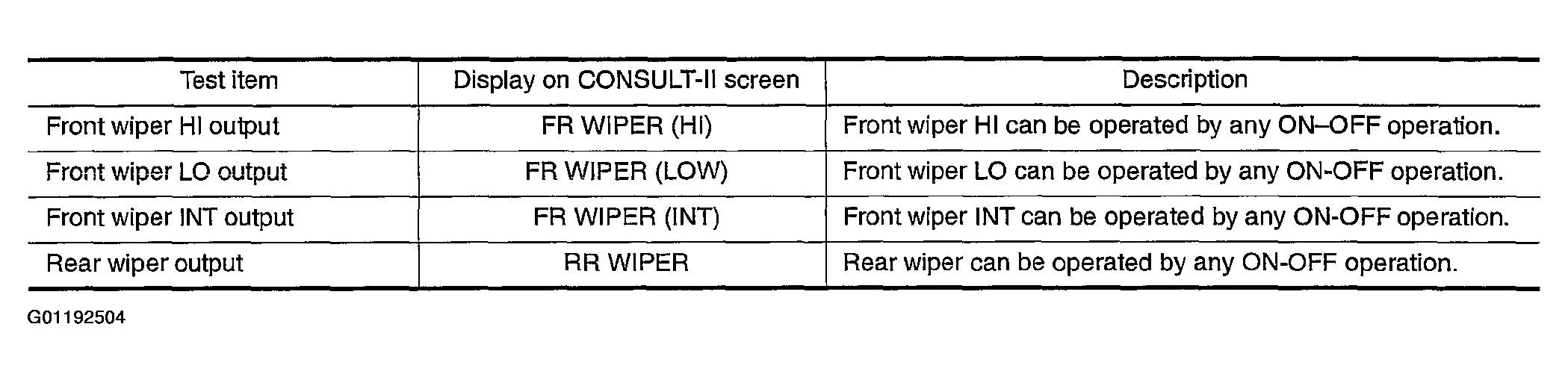

Fig 1: Display Item List (Active Test)
G01192504Courtesy of NISSAN MOTOR CO., U.S.A.
