Adjustment (2): Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

When any parts listed below are replaced, adjust total end play and reverse clutch end play.

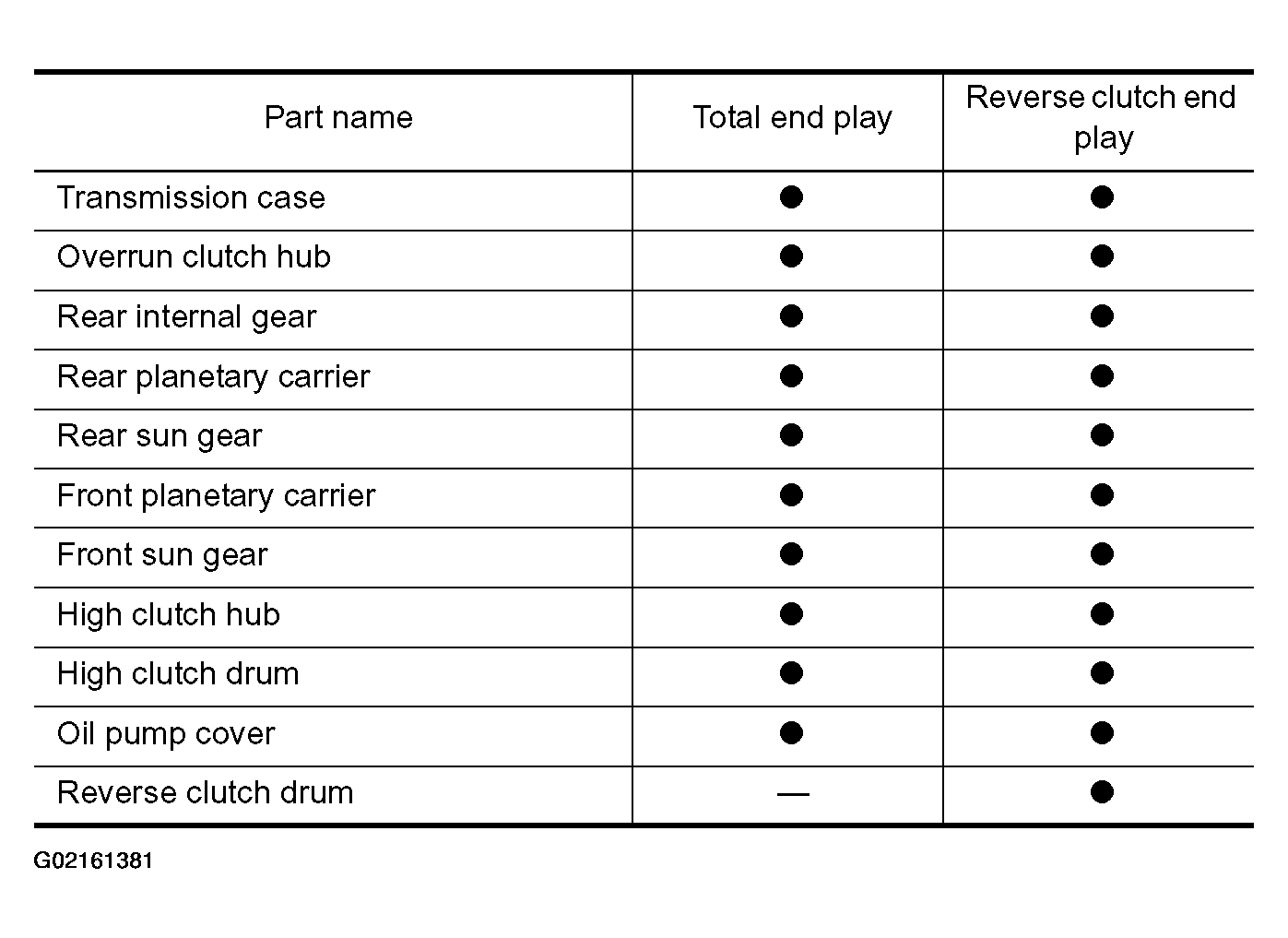

Fig 1: Total End Play And Reverse Clutch End Play Adjustment Chart
G02161381Courtesy of NISSAN MOTOR CO., U.S.A.
