HOW TO READ Circuit DiagramS: Description: Notes

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

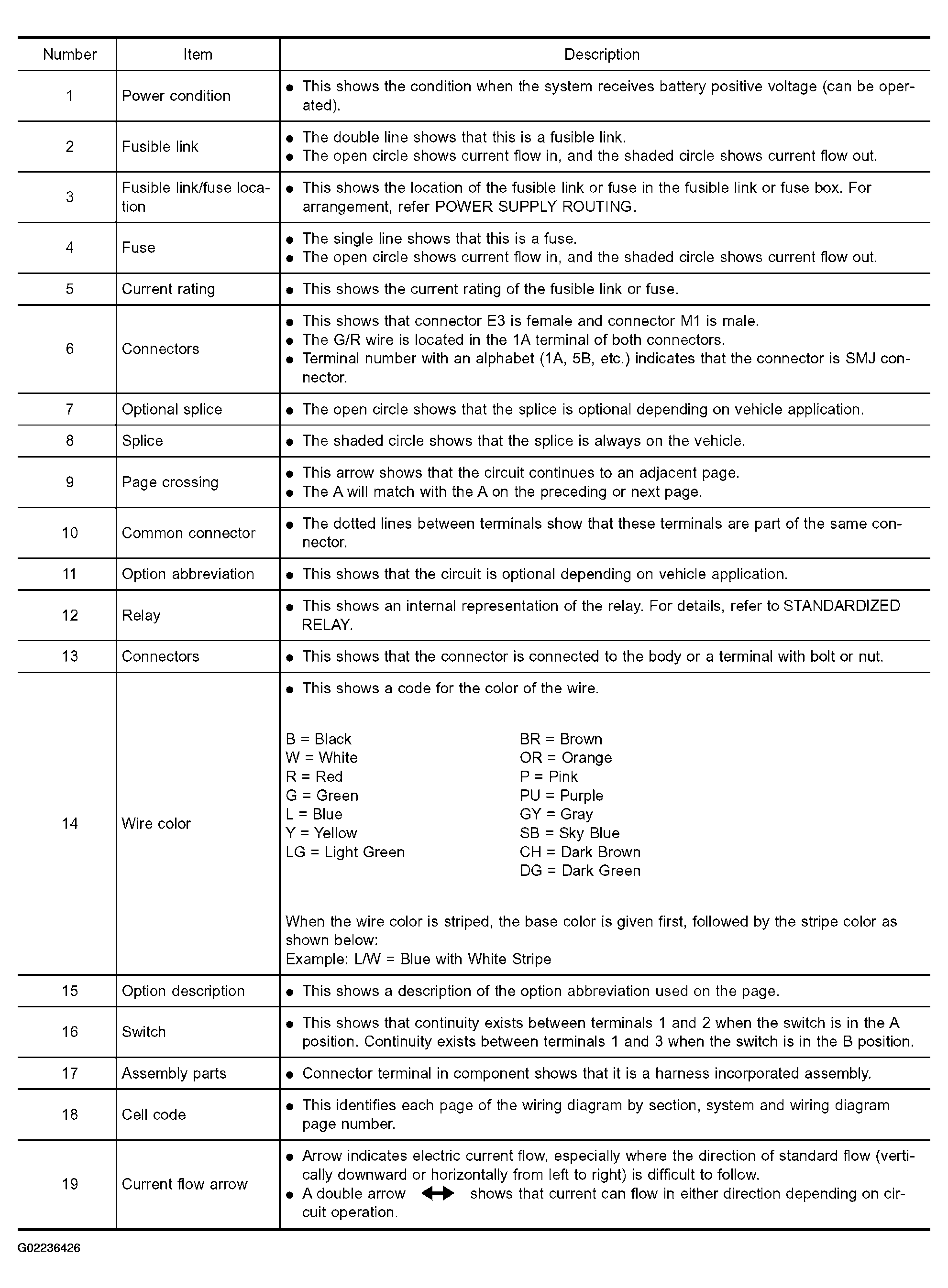

Fig 1: Displaying Item Description Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

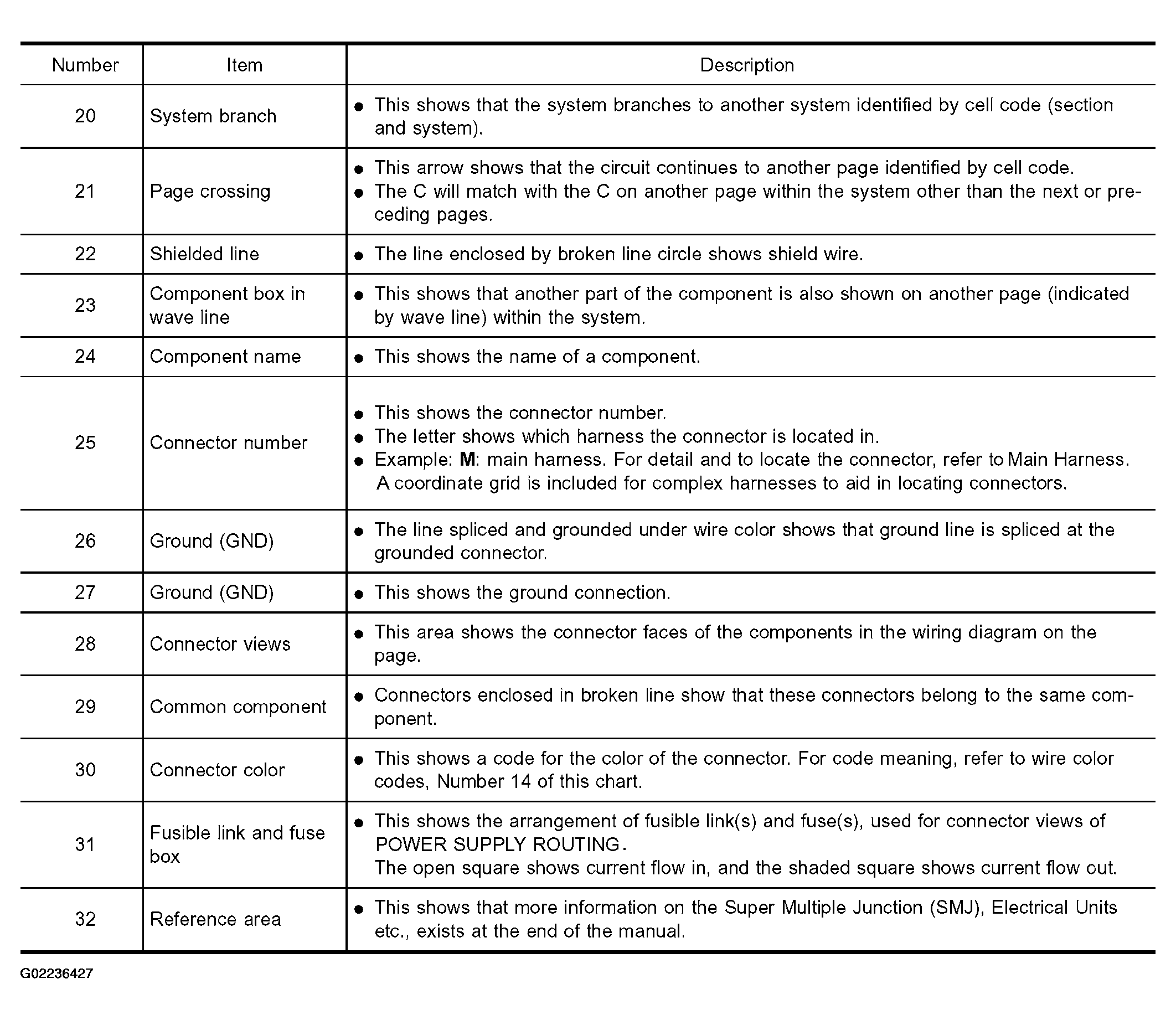

Fig 2: Displaying Item Description Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
