Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heater & cooling unit. Refer to "HEATER & COOLING UNIT ASSEMBLY ".
  2. Remove evaporator from heater & cooling unit.
  3. Separate heater & cooling unit case.
  4. Remove intake sensor.

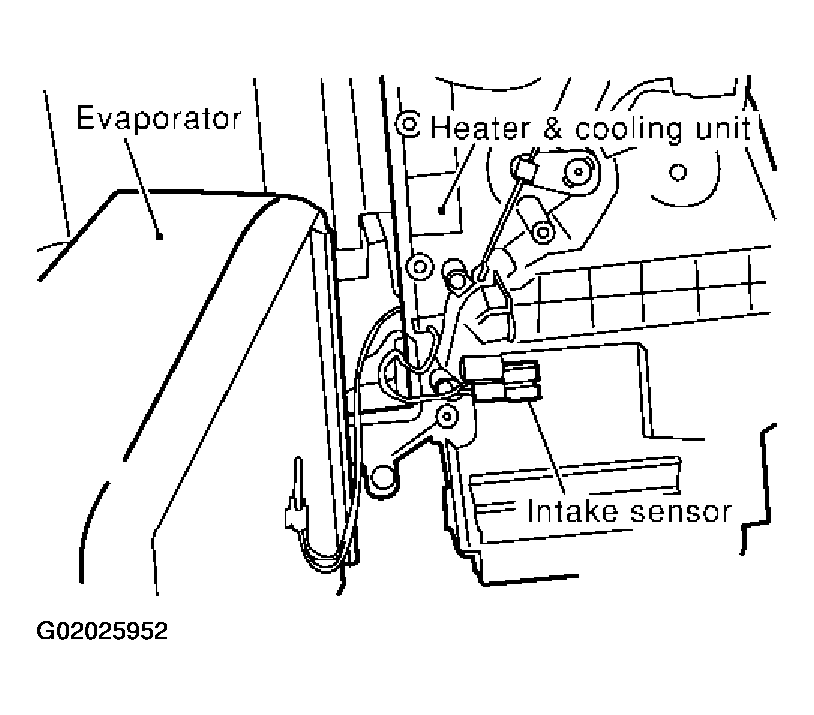

    Fig 1: Identifying Intake Sensor
    G02025952Courtesy of NISSAN MOTOR CO., U.S.A.
