Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Spiral cable may snap due to steering operation if steering column is separated from steering gear. Therefore fix steering wheel with a string to avoid turns.

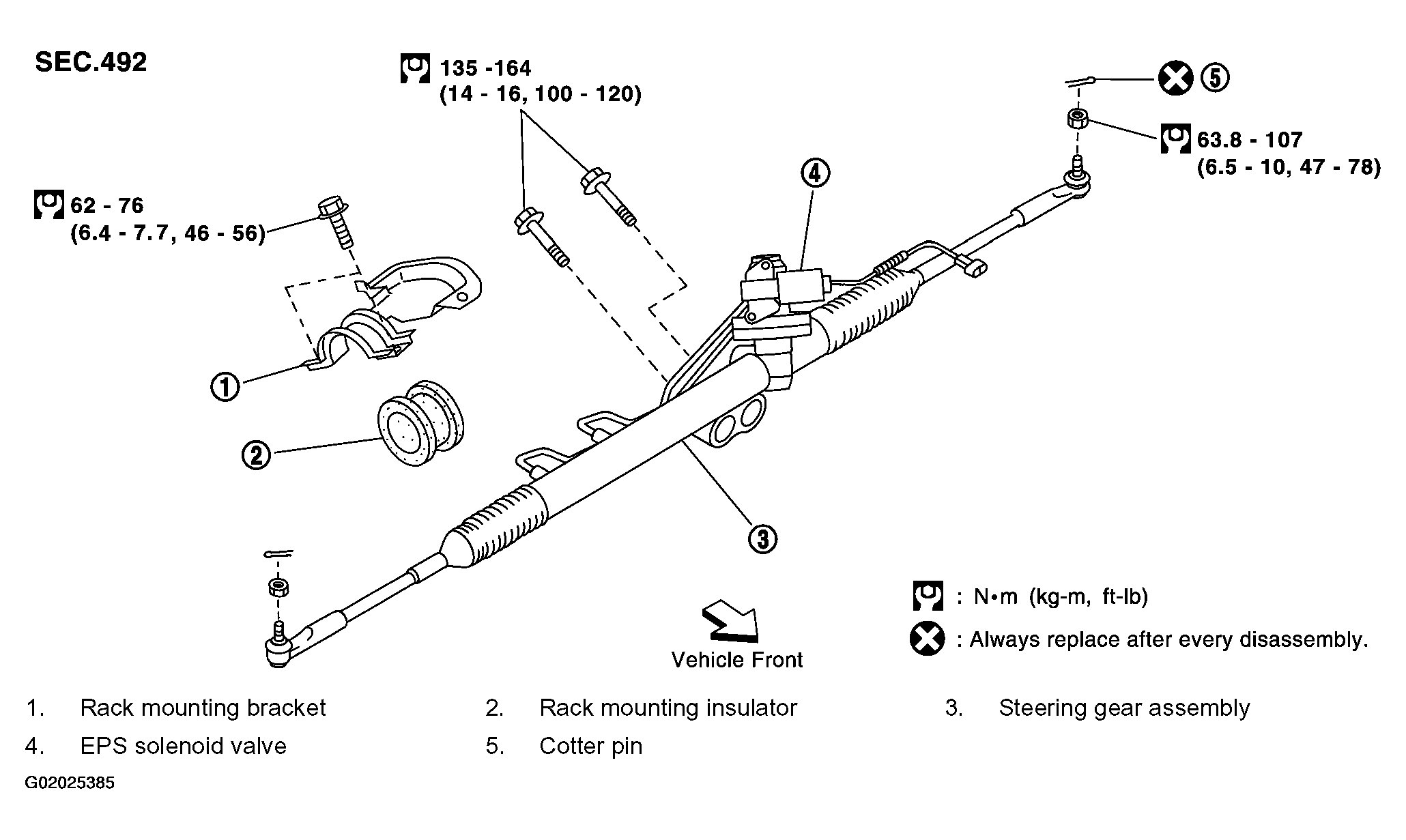

Fig 1: Removing Power Steering Gear Linkage And Identifying Torque
G02025385Courtesy of NISSAN MOTOR CO., U.S.A.
