Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

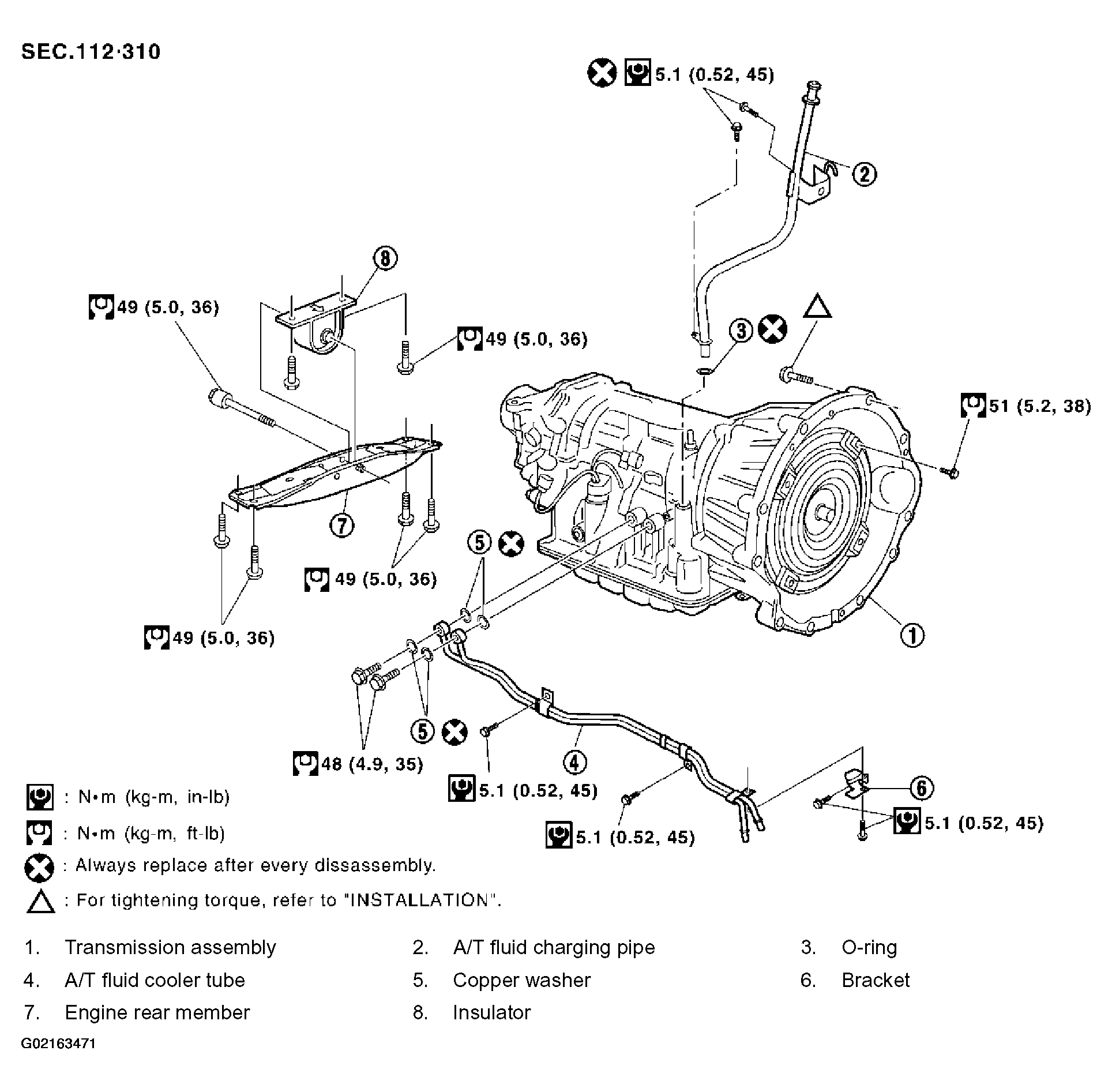

Fig 1: Removing/Installing Transmission Assembly
G02163471Courtesy of NISSAN MOTOR CO., U.S.A.
