Normal Control

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Each clutch is adjusted to the necessary pressure to match the engine drive force.

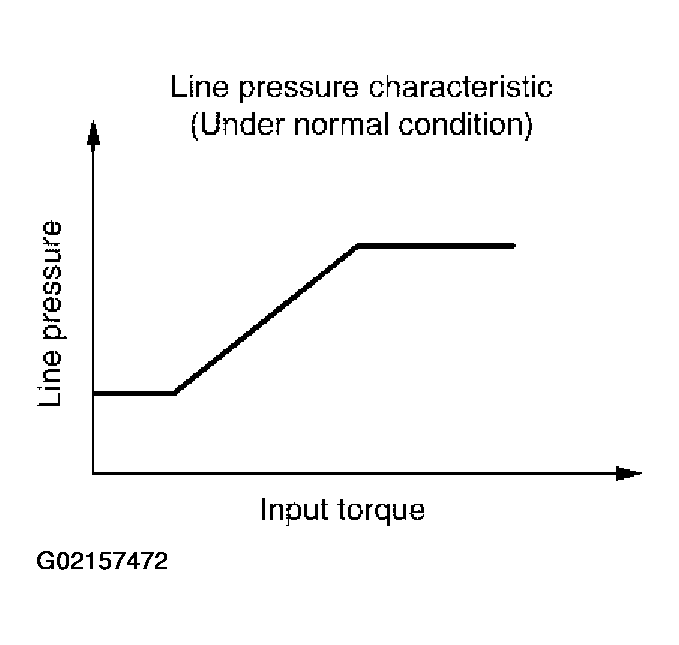

Fig 1: Identifying Line Pressure Characteristics Graph (Normal Condition)
G02157472Courtesy of NISSAN MOTOR CO., U.S.A.
