Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector.

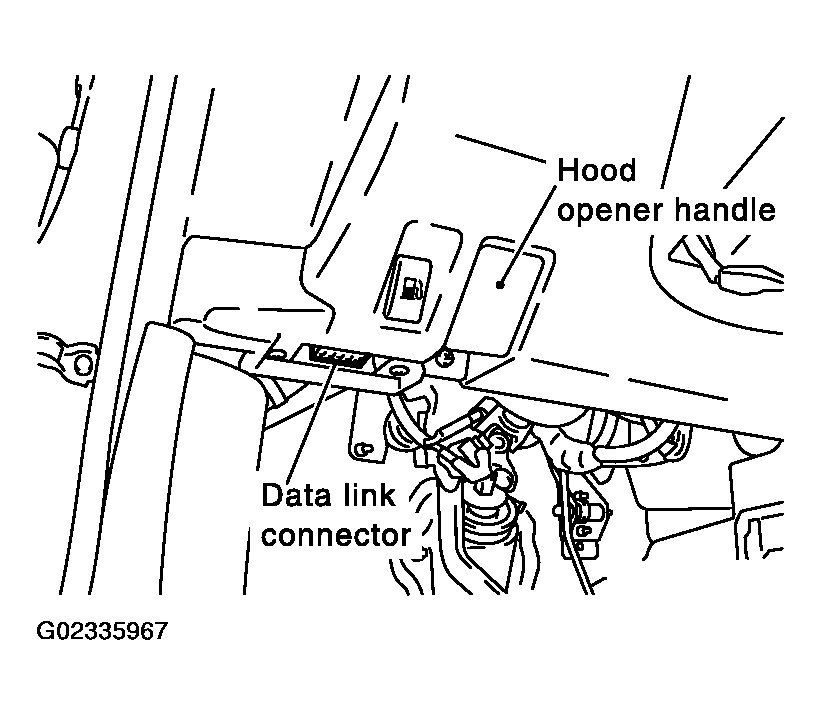

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Touching "START (NISSAN BASED VHCL) Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: Touching "BCM" Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DOOR LOCK".

Fig 4: Touching "DOOR LOCK" Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"WORK SUPPORT", "DATA MONITOR" and "ACTIVE TEST" are available.

Fig 5: Selecting Diagnosis Mode "WORK SUPPORT", "DATA MONITOR" & "ACTIVE TEST"
Courtesy of NISSAN MOTOR CO., U.S.A.
