All Items, Main Items, Select Item Menu

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

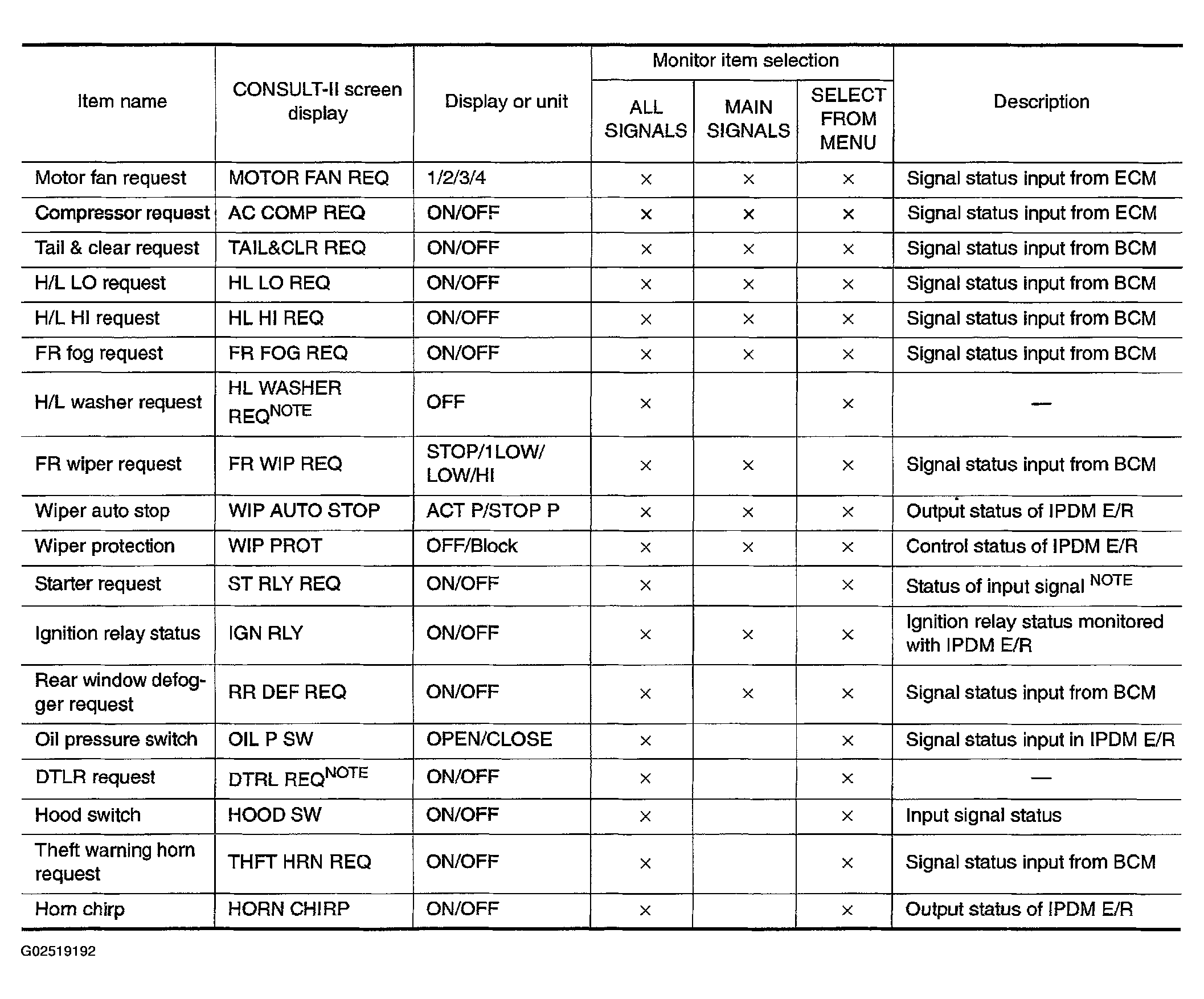

Fig 1: Item Description Table
G02519192Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is at ACC, the display may not be correct.
  • This item is displayed, but cannot monitor it.
