CONSULT-II Basic Operation

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.
    Fig 1: Locating Hood Opener Handle & Data Link Connector (DLC)
    G02528604Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Engine Data Monitor
    G02528605Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to PRECAUTIONS WHEN USING CONSULT-II .

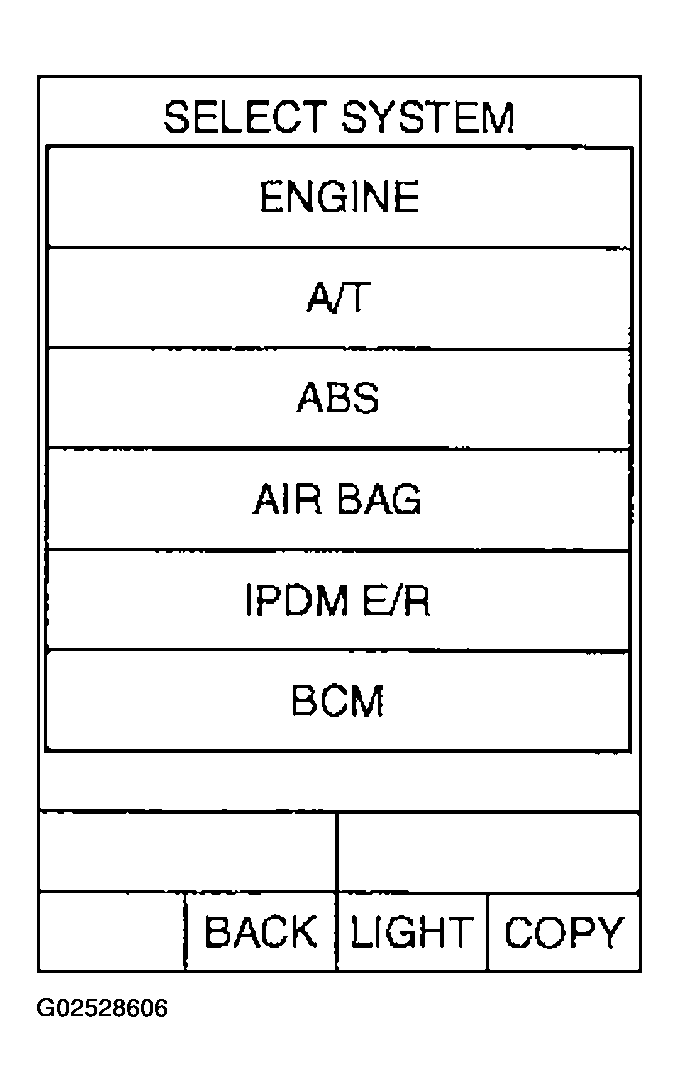

    Fig 3: CONSULT-II Select System Data Monitor
    G02528606Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "COMB SW".
    Fig 4: CONSULT-II Select Test Item Data Monitor
    G02528607Courtesy of NISSAN MOTOR CO., U.S.A.
