Assembly (1)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Install differential side oil seals on transmission case and converter housing.

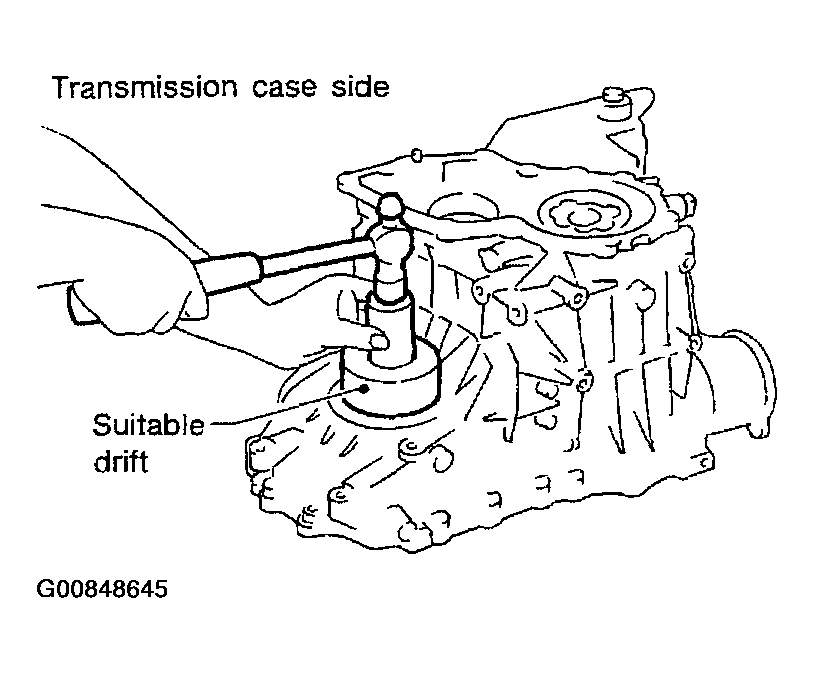

Fig 1: Installing Oil Seals (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

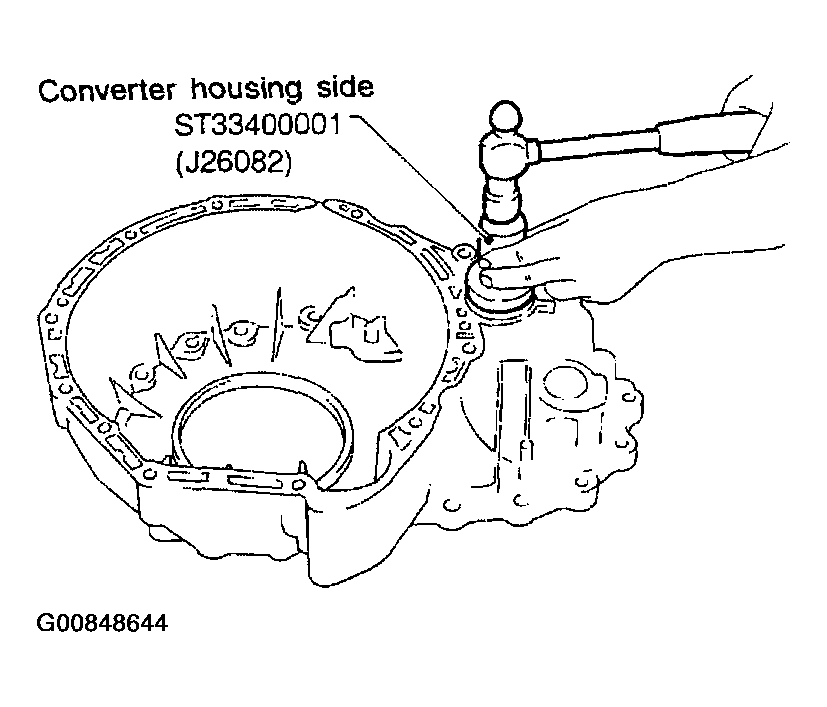

Fig 2: Installing Oil Seals (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking actuator support to transmission case. Tighten parking actuator support bolts to the specified torque. Refer to "OVERHAUL ".
- Pay attention to direction of parking actuator support.

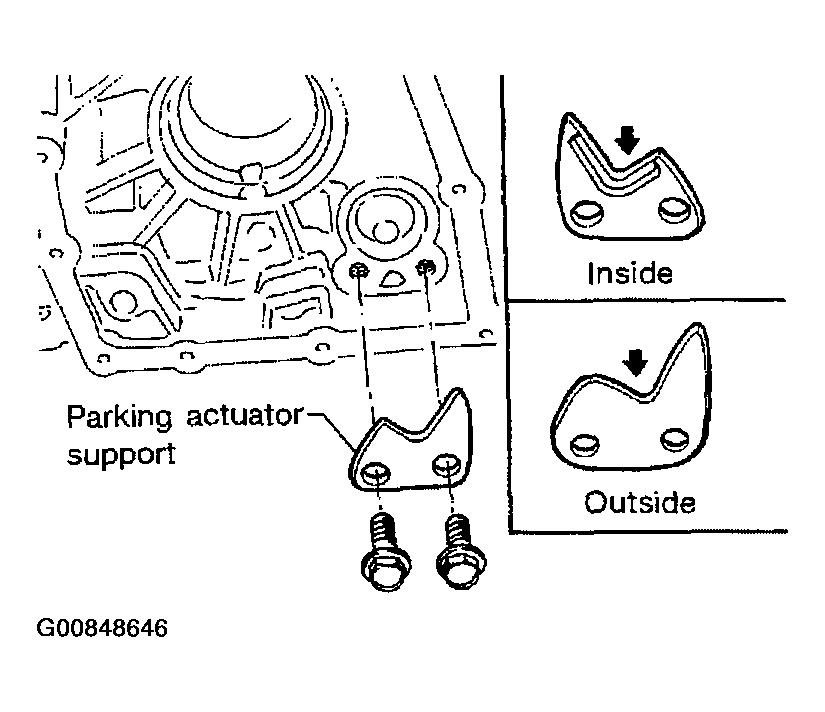

  Fig 3: Installing Parking Actuator Support To Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl on transmission case and fix it with parking shaft.
Install return spring.

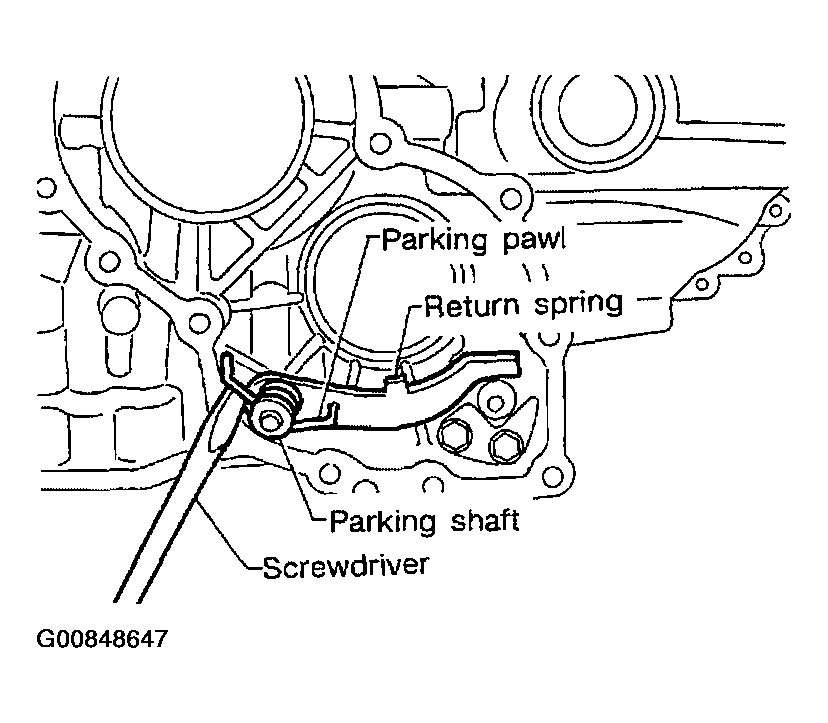

Fig 4: Installing Parking Pawl On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
