Section 239 (Specifications & Procedures): Specifications

WARNING: This page is about a different car, the 2003 Nissan Maxima and 2002 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Use illustrations for front and rear wheel alignment specifications. See Fig 1 and Fig 2 .

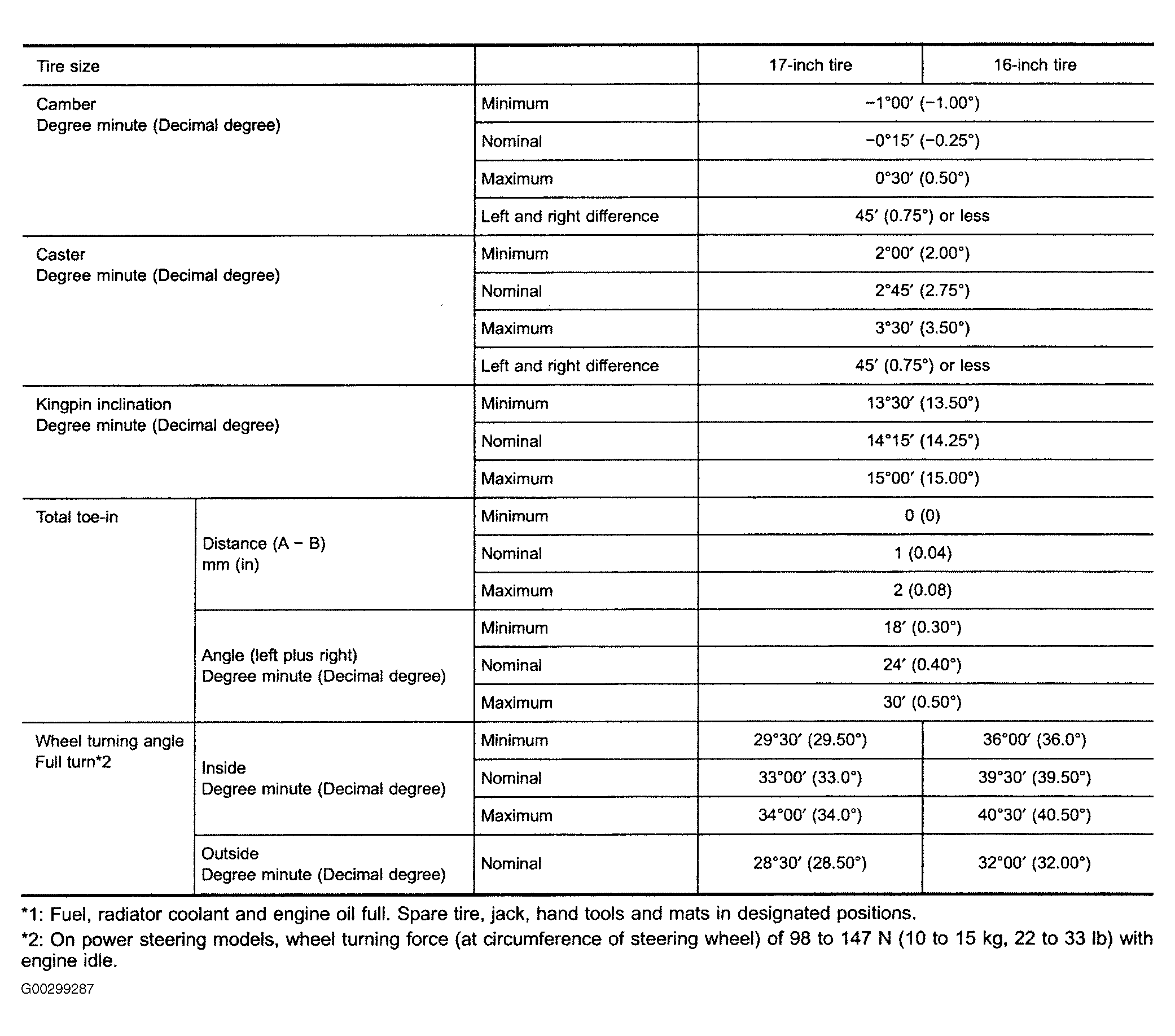

Fig 1: Front Wheel Alignment Specifications (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

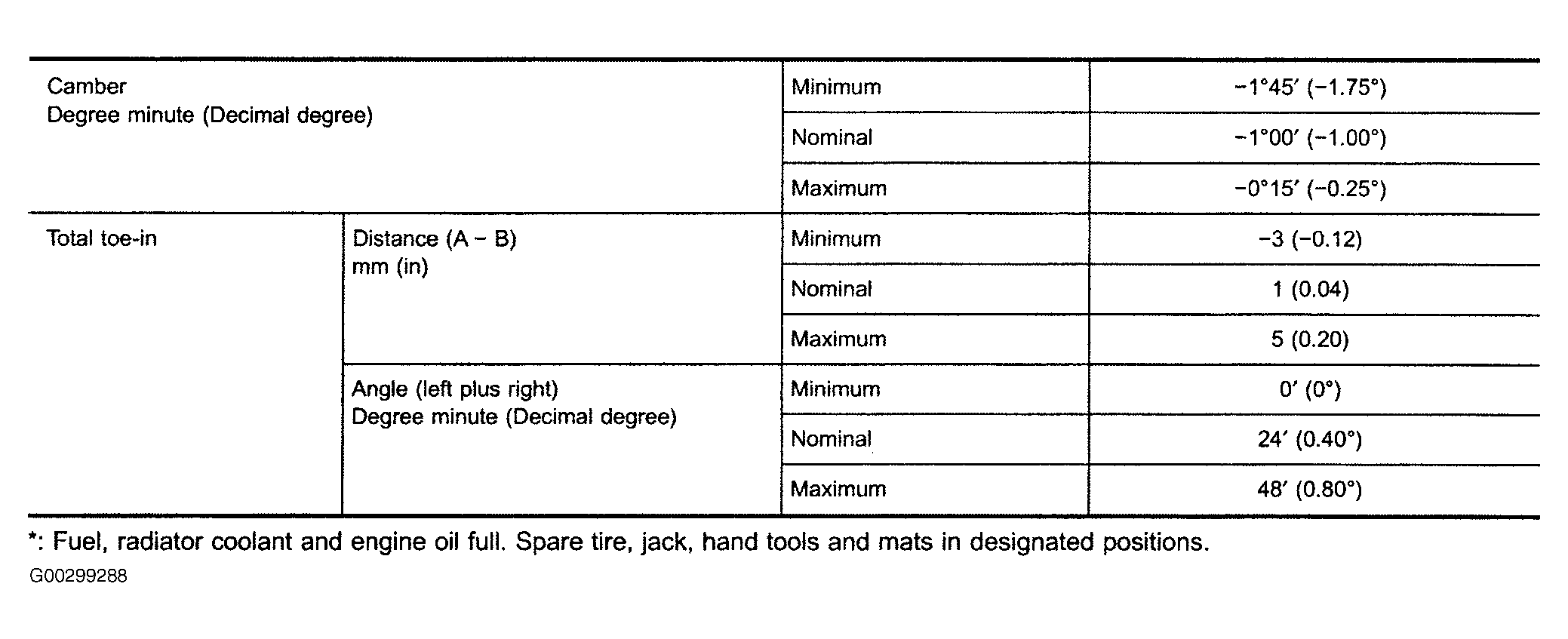

Fig 2: Rear Wheel Alignment Specifications (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.
