Overall Sequence

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

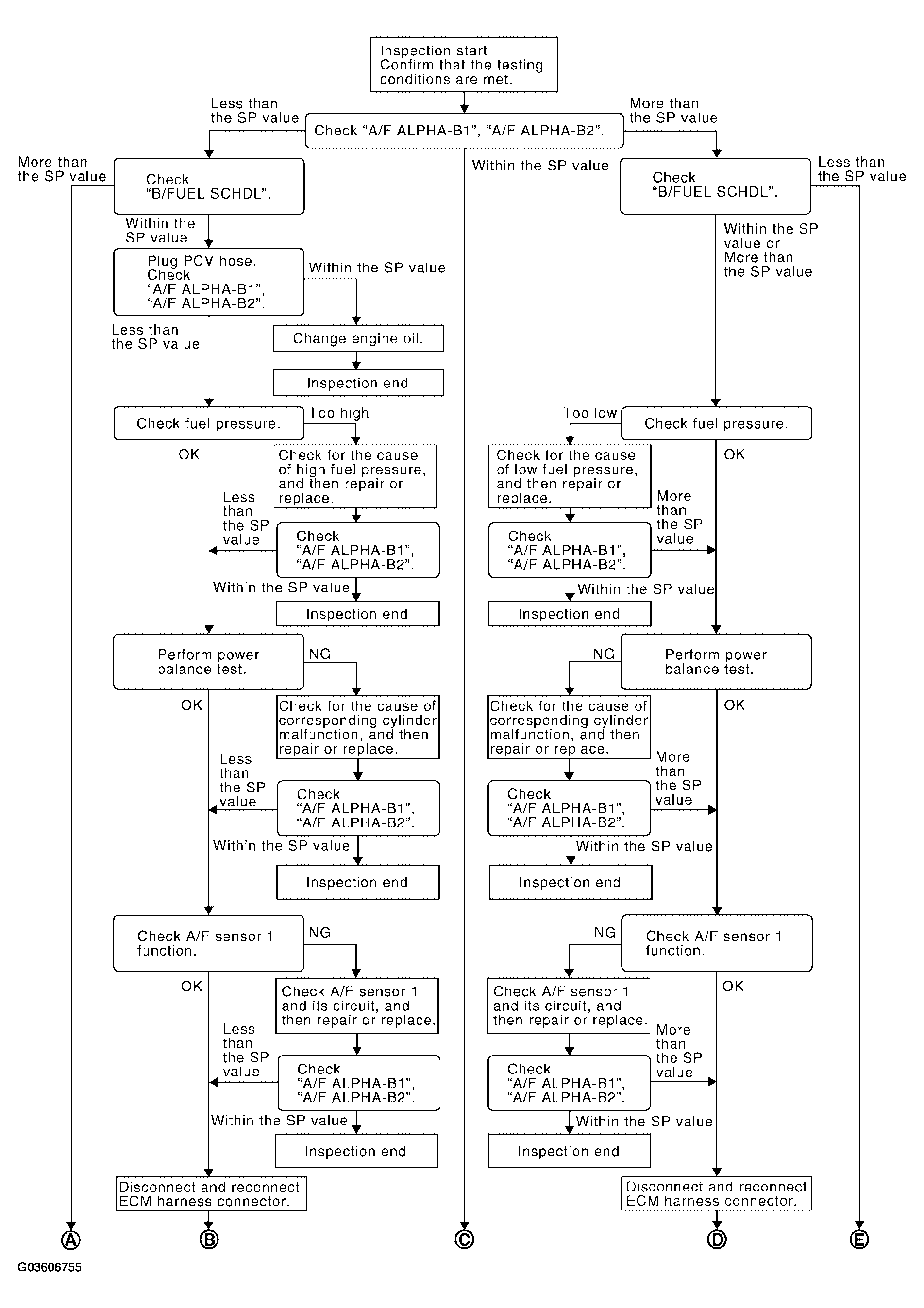

Fig 1: Overall Sequence Of Diagnostic Procedure (1 Of 2)
G03606755Courtesy of NISSAN MOTOR CO., U.S.A.

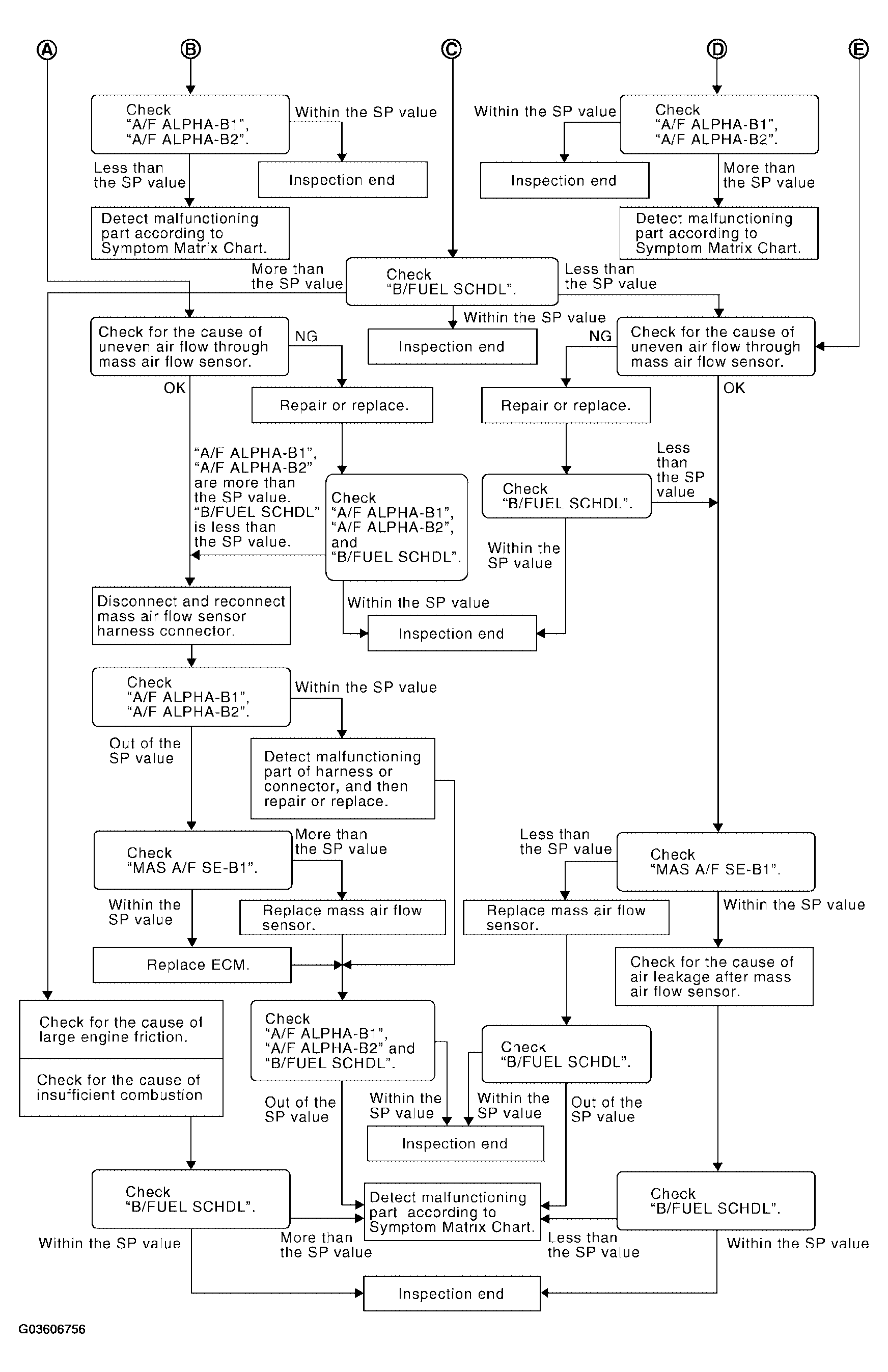

Fig 2: Overall Sequence Of Diagnostic Procedure (2 Of 2)
G03606756Courtesy of NISSAN MOTOR CO., U.S.A.
