Parking Brake Control: Component

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

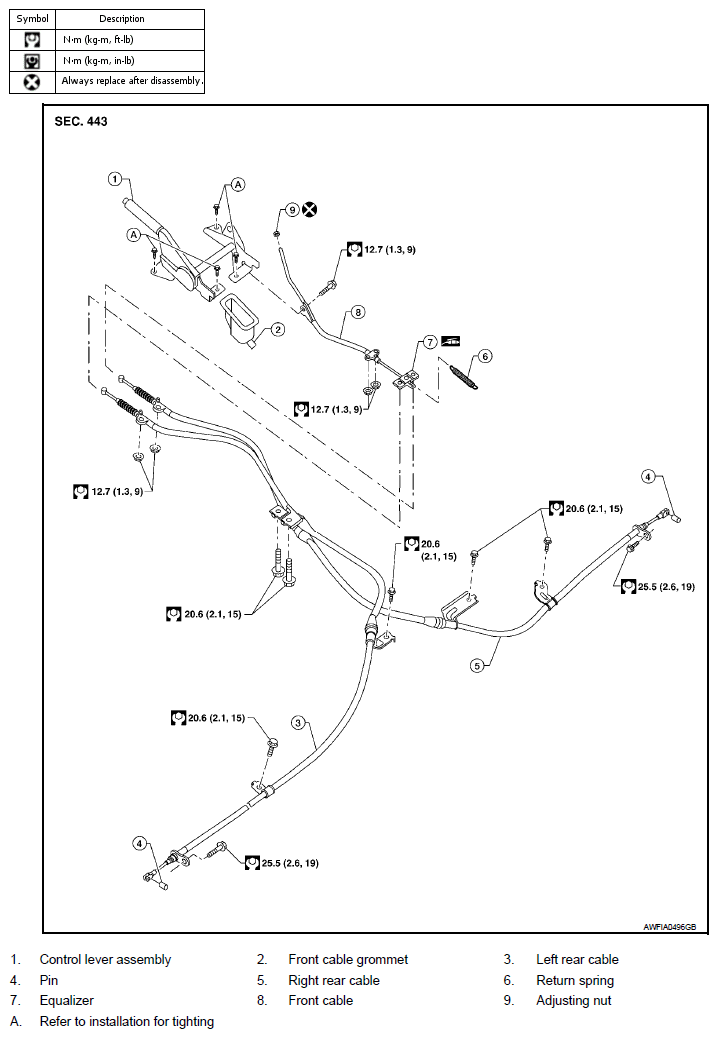

Fig 1: Parking Brake Control Replacement Components With Torque Specifications
G07155363
