Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

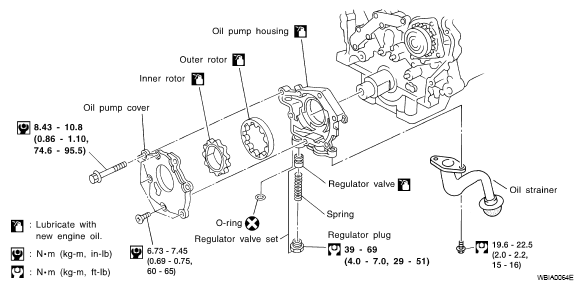

Fig 1: Exploded View Of Oil Pump And Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Disassemble as shown .
Assembly is in the reverse order of Disassembly. When assembling the oil pump, apply engine oil to the rotors .
