Inner Rear View Mirror: Installation
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL INNER REAR VIEW MIRROR ASSEMBLY
- Install the mirror in the direction of the white arrow.

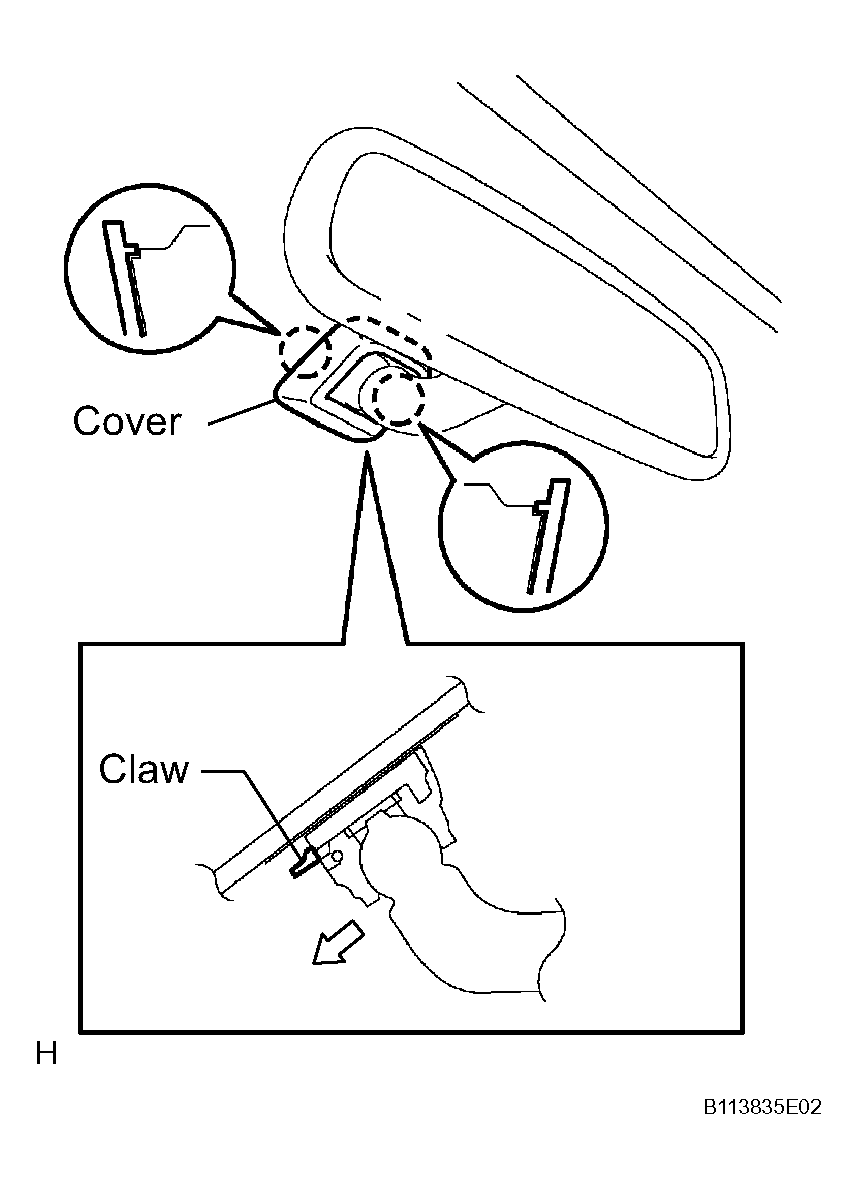

- Install the cover as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
