Floor Shift Lever Assembly: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Floor Shift Lever Assembly Replacement Components With Torque Specifications (1 Of 2)
G04222459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

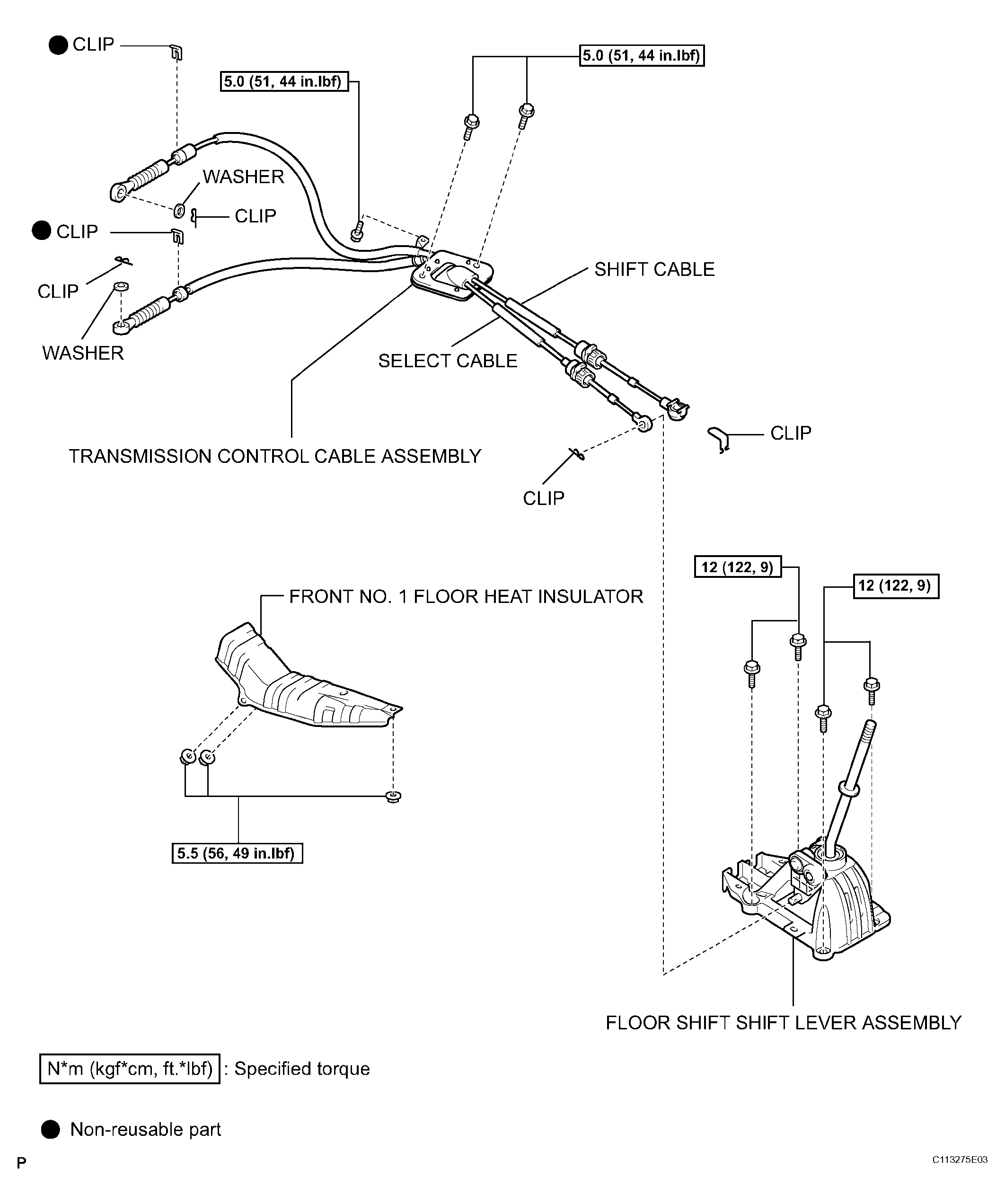

Fig 2: Floor Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 2)
G04222460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
