Removal And Inspection: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door lower finisher. Refer to , "BACK DOOR LOWER FINISHER ".
  2. Remove push pins and remove tweeter.
  3. Disconnect connector.

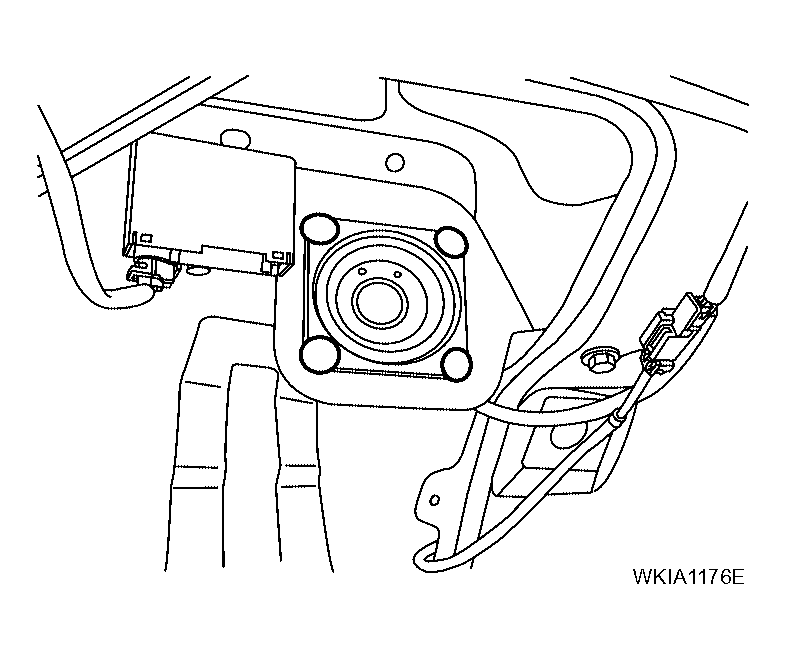

    Fig 1: Identifying Rear Tweeter
    G04201533Courtesy of NISSAN MOTOR CO., U.S.A.
