Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative cable.
  2. Remove center console lower cover. Refer to , "INSTRUMENT PANEL ASSEMBLY ".
  3. Remove cluster lid C. Refer to , "CLUSTER LID C ".
  4. Remove instrument lower panel LH. Refer to , "REMOVAL ".
  5. Remove storage tray. Refer to , "INSTRUMENT PANEL ASSEMBLY ".
  6. Remove glove box. Refer to , "GLOVE BOX "
  7. Remove center console. Refer to , "INSTRUMENT PANEL ASSEMBLY ".
  8. Disconnect electrical connectors.
  9. Remove the four audio unit nuts, using power tool.
  10. Pull out audio unit and disconnect audio unit electrical connectors.

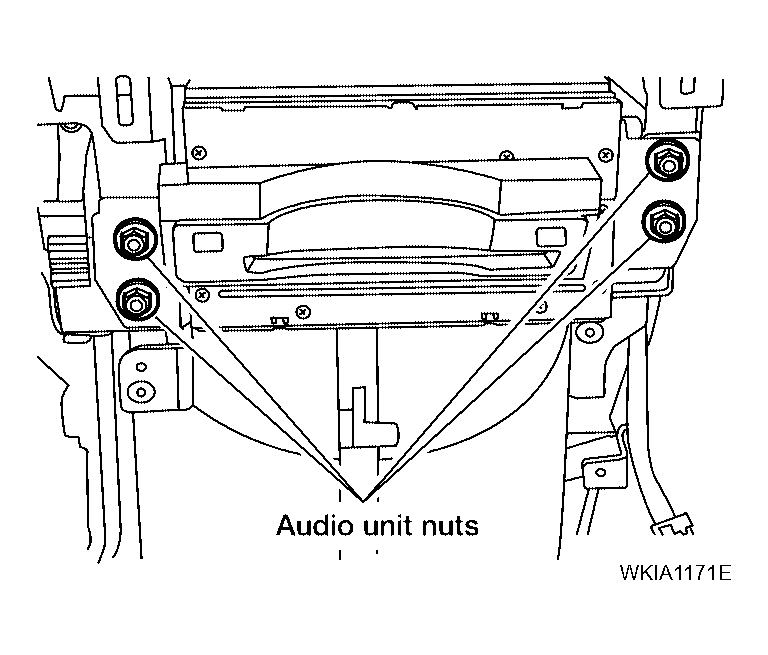

    Fig 1: Identifying Audio Unit Nuts
    G04201525Courtesy of NISSAN MOTOR CO., U.S.A.
