Door Key Cylinder Assembly

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

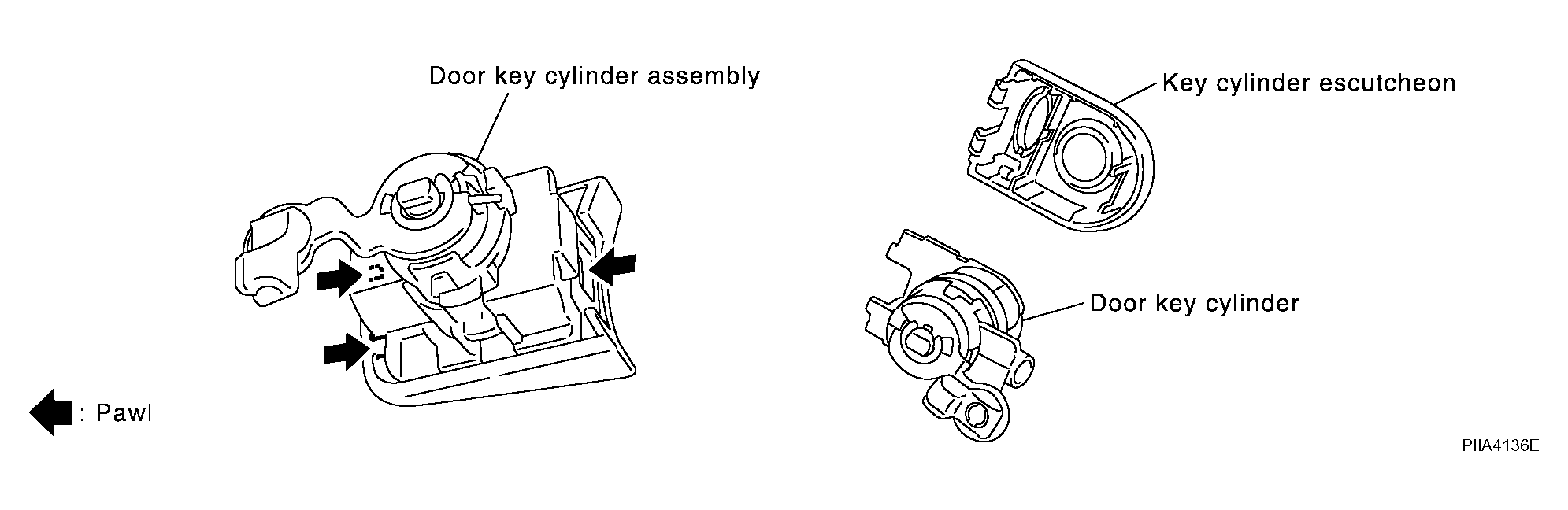

Fig 1: Identifying Door Key Cylinder Assembly
G04199498Courtesy of NISSAN MOTOR CO., U.S.A.

Remove the key cylinder escutcheon pawl and remove the door key cylinder.
