Operation table of BCM and combination switches
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

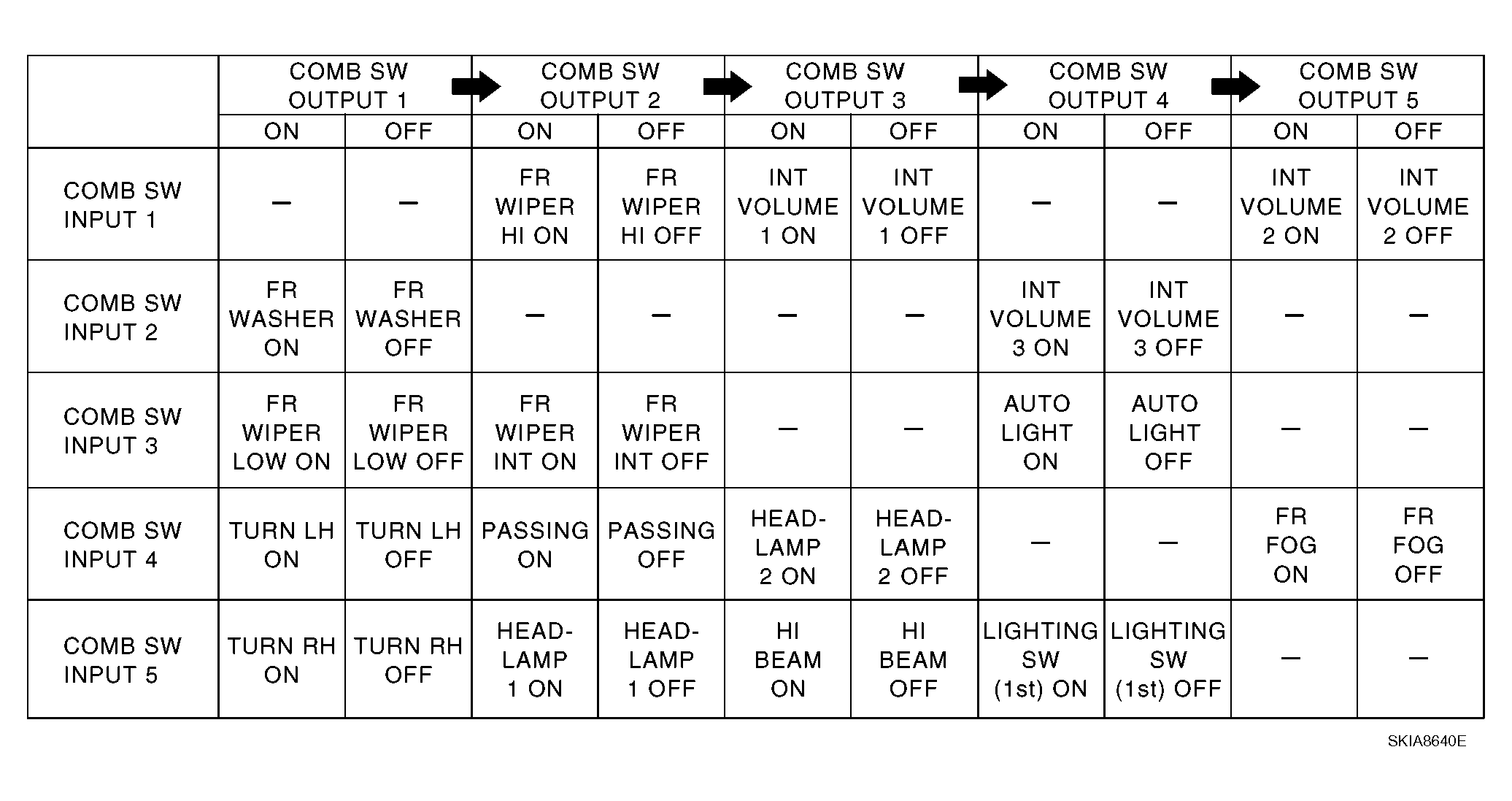

BCM reads operation status of combination switch using combinations shown in table below.
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Headlamp system has a dual switch.
