Check Door Switch

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR SWITCH INPUT SIGNAL

    With CONSULT-II

    Check door switches ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

    MONITOR ITEM AND CONDITION REFERENCE

    Monitor item Condition
    DOOR SW-DR CLOSE --> OPEN: OFF --> ON
    DOOR SW-AS
    Fig 1: CONSULT II Display - Data Monitor
    G04077386Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between BCM connectors B4 (driver side), M1 (passenger side) terminals 62, 12 and ground.

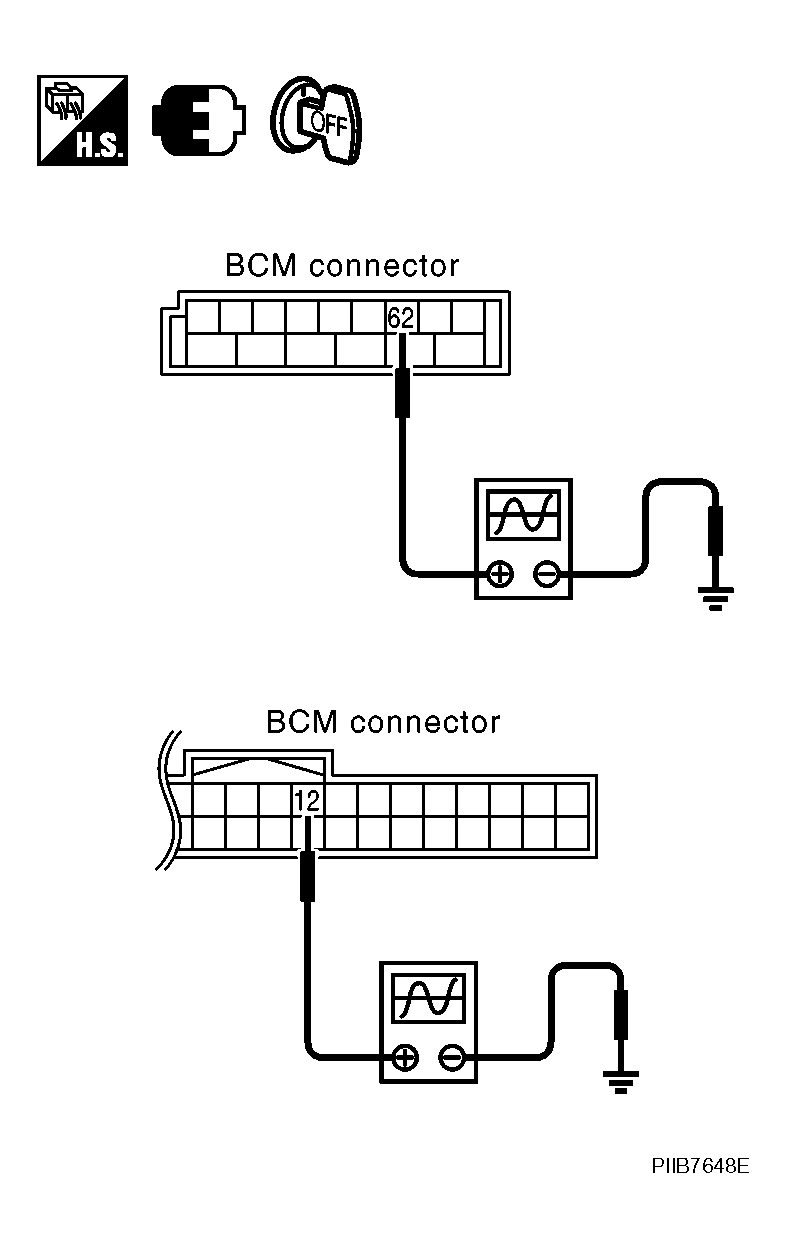

    Fig 2: Identifying Voltage Between BCM Connectors B4 (Driver Side), M1 (Passenger Side) Terminals 62, 12 And Ground
    G04181970G04181971Courtesy of NISSAN MOTOR CO., U.S.A.NISSAN MOTOR CO., U.S.A.
    TERMINALS VOLTAGE REFERENCE

    Item Connectors Terminals (Wire color) Condition Signal (Reference value)
    (+) (-)
    Driver side door switch B4 62 (Y) Ground CLOSE
    G04181971Courtesy of NISSAN MOTOR CO., U.S.A.
    Passenger side door switch M1 12 (P) OPEN 0

    OK or NG

    OK: Door switch circuit is OK.

    NG: GO TO 2.

  2. CHECK DOOR SWITCH
    1. Turn ignition switch OFF.
    2. Disconnect door switch connector.
    3. Check continuity between door switch terminal 1 and ground part of door switch.
      TERMINALS CONTINUITY REFERENCE

      Terminal Door switch condition Continuity
      1 Ground part of door switch Pushed No
      Released Yes
      Fig 3: Identifying Continuity Between Door Switch Terminal 1 And Ground
      G04181972Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 3.

    NG: Replace door switch.

  3. CHECK DOOR SWITCH CIRCUIT
    1. Disconnect BCM connector.
    2. Check continuity between door switch harness connector B17, B410 terminal 1 and BCM harness connector M1, B4 terminals 12, 62.

      Driver door

      1 (G/B) -62 (Y): Continuity should exist  .

      Passenger door

      1 (P) - 12 (P): Continuity should exist  .

    3. Check continuity between door switch harness connector B17, B410 terminal 1 and ground.

      1 (Y or P) - Ground: Continuity should not exist  .

    OK or NG

    OK: Check door switch case ground condition.

    NG: Repair or replace harness between BCM and door switch.

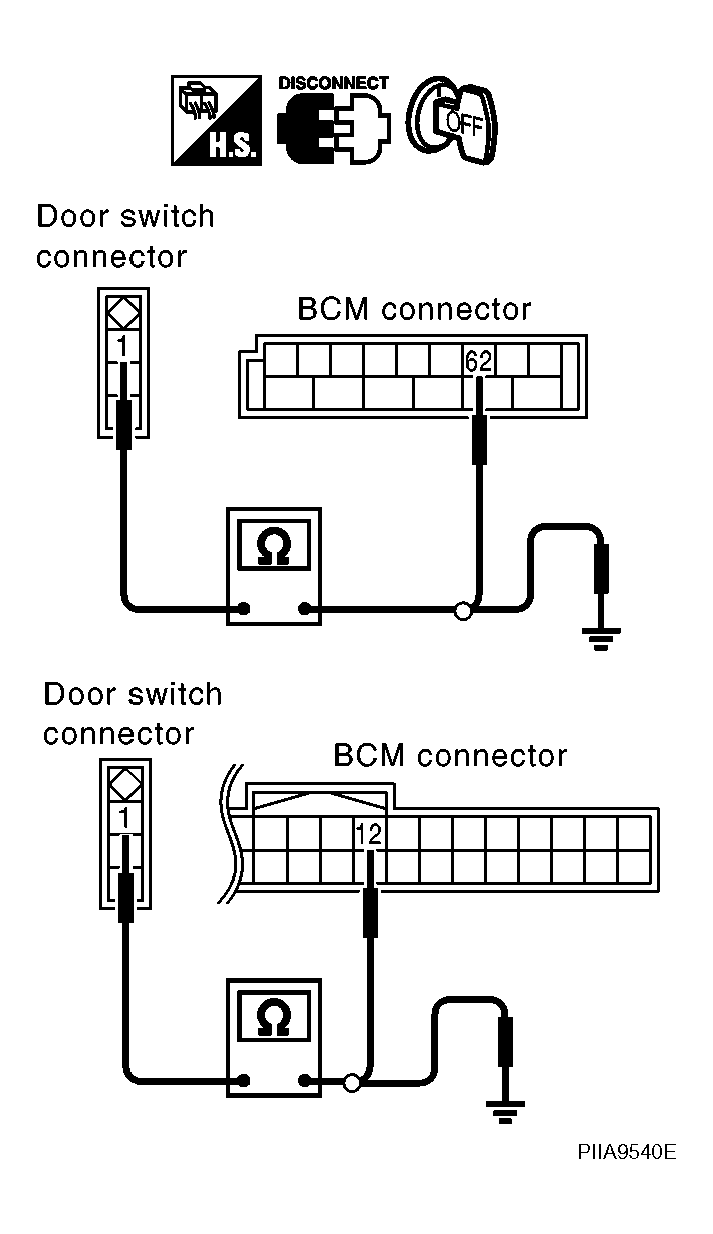

    Fig 4: Identifying Continuity Between Door Switch Harness Connector B17, B410 Terminal 1 And Ground
    G04181973Courtesy of NISSAN MOTOR CO., U.S.A.
