Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inner sockets.
  2. Install the large-diameter side of the boots to the gear housing assembly.

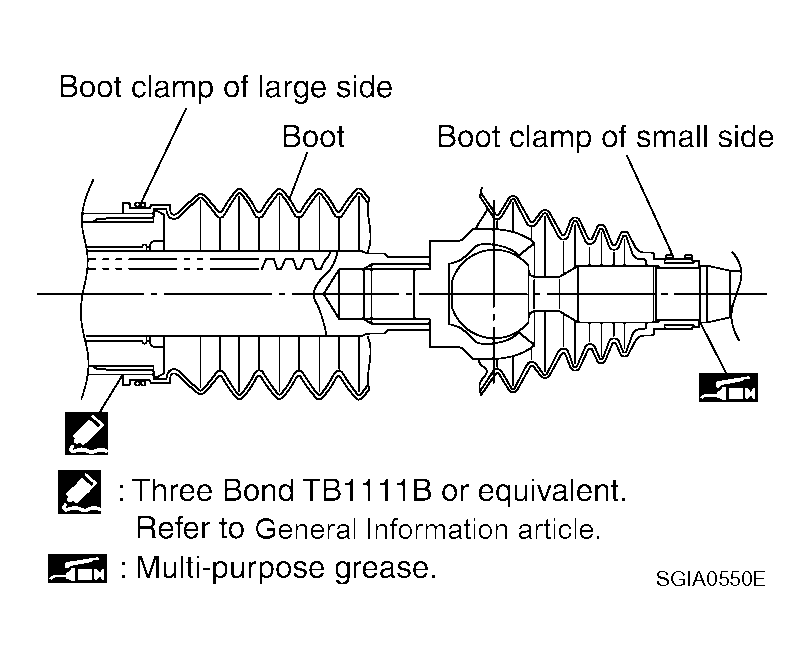

    3. Fig 1: Installing Large-Diameter Side Of Boots To Gear Housing Assembly
    G04187301Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the small-diameter side of the boots to the groove of the inner sockets.
  4. Install the boot clamps to the boots, as shown.
    CAUTION: Do not reuse the large-diameter boot clamps.

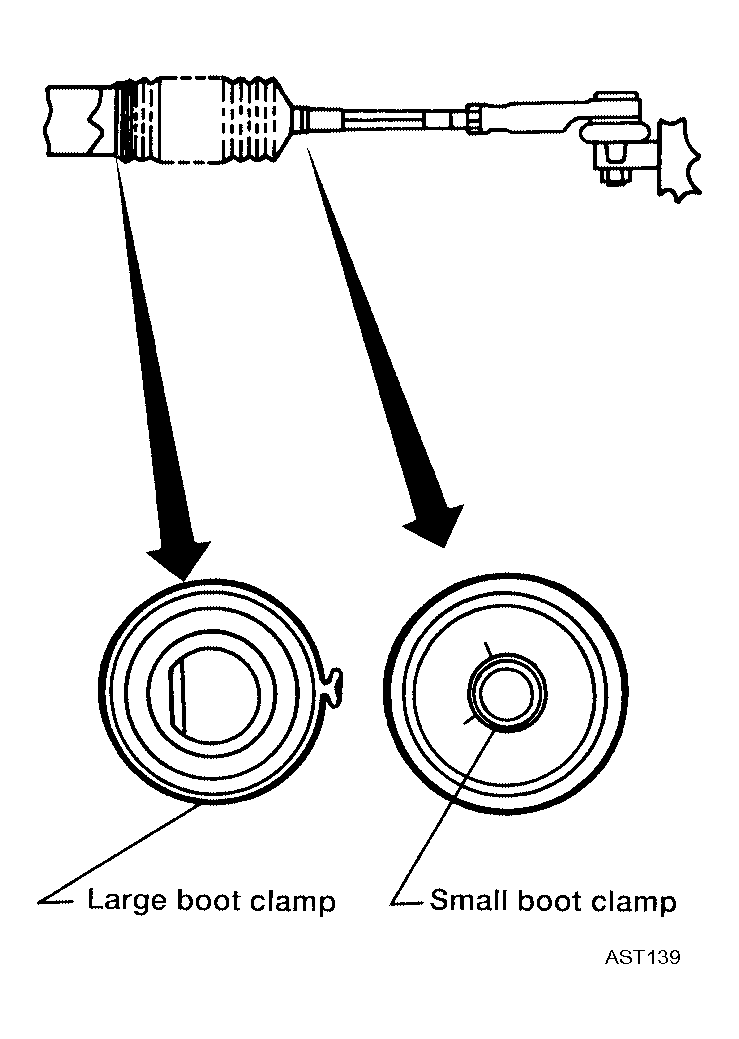

    Fig 2: Installing Boot Clamps To Boots
    G04187302Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Crimp the large-diameter boot clamps, using Tool.

    Tool number: KV40107300 ( - )

    Fig 3: Clamping Boot Band
    G04076454Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install the cylinder tubes to the gear housing assembly.
  7. Install the lock nuts and outer sockets to the inner sockets.
  8. Thread the outer sockets onto the inner sockets to the specified length "L", then tighten the lock nuts to the specification. Refer to "DISASSEMBLY AND ASSEMBLY ". Reconfirm that the tie-rod length "L" is within specification.

    Maximum inner socketlength "L": 115.2 mm (4.54 in)

    Fig 4: Identifying Tie Rod Components And Rod Length Measurement Area
    G04076779Courtesy of NISSAN MOTOR CO., U.S.A.
