Intake Sensor

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

The intake sensor is located on top of the heater and cooling unit assembly next to the A/C evaporator cover. It converts temperature of air after it passes through the evaporator into a resistance value which is then input to the front air control.

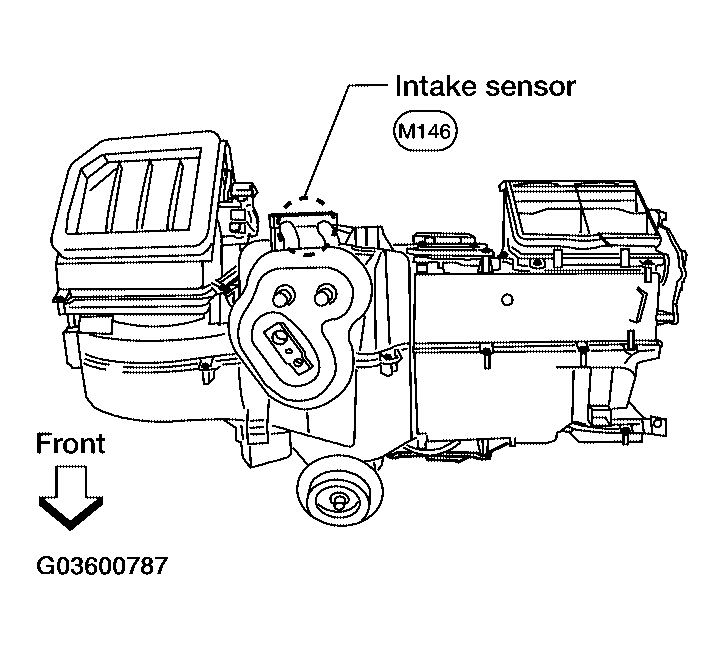

Fig 1: Identifying Intake Sensor
G03600787Courtesy of NISSAN MOTOR CO., U.S.A.
