Aiming Adjustment: Notes

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

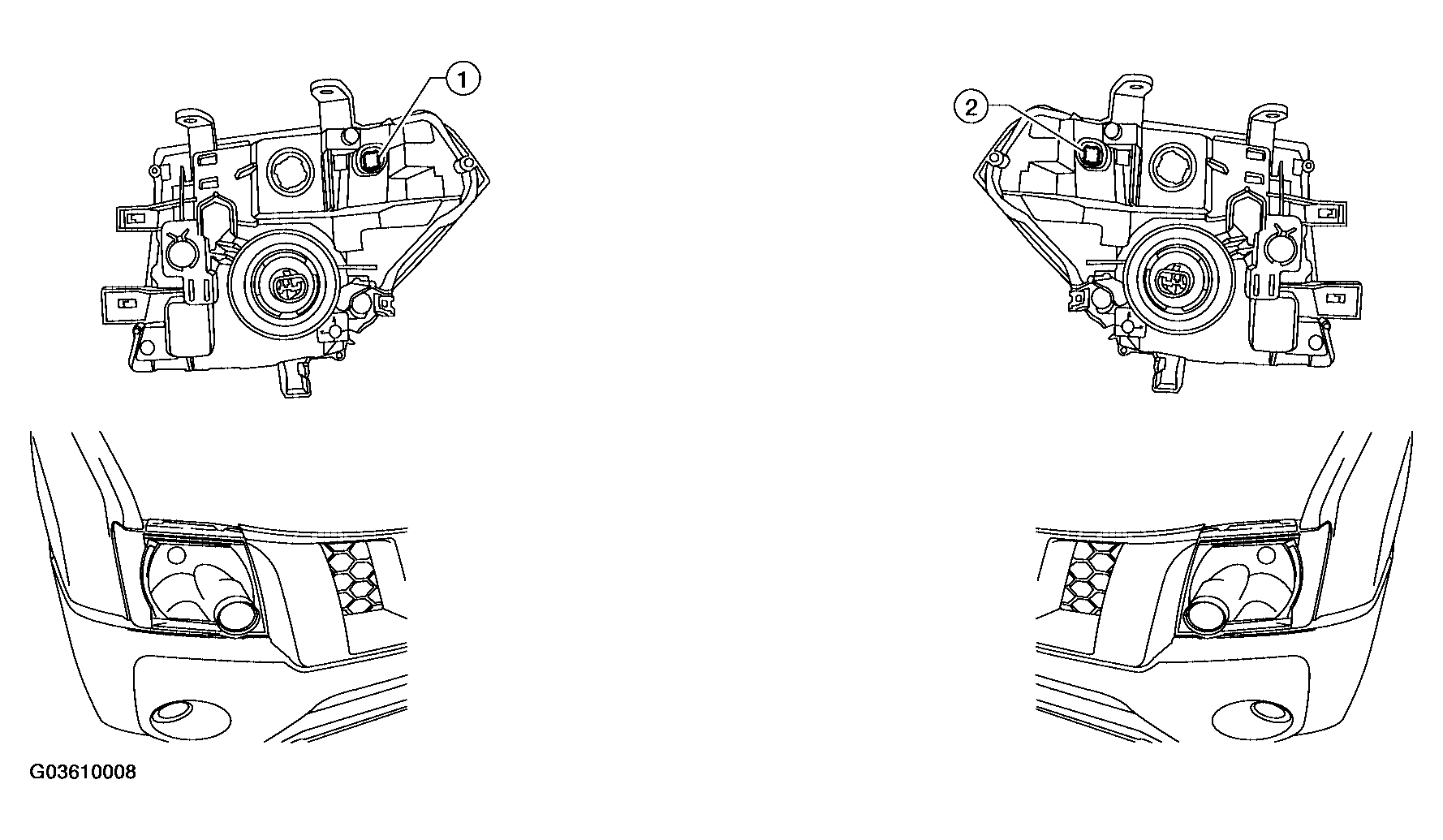

Fig 1: Identifying Aiming Adjustment

Courtesy of NISSAN MOTOR CO., U.S.A.

For details, refer to local regulations where applicable in your area.

When performing headlamp aiming adjustment, use an aiming wall screen.

Before performing aiming adjustment, check the following.

Check all tires and adjust to correct pressure.
Place vehicle and screen on a level surface.
Be sure there is no additional load in vehicle other than the driver (or equivalent weight placed in driver's position). Coolant and engine oil filled to correct level, and fuel tank full.
Confirm spare tire, jack and tools are properly stowed.
