Control Rod Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect lower lever of control device and control rod.
  2. Remove manual lever from transmission.
  3. Remove control rod from vehicle.

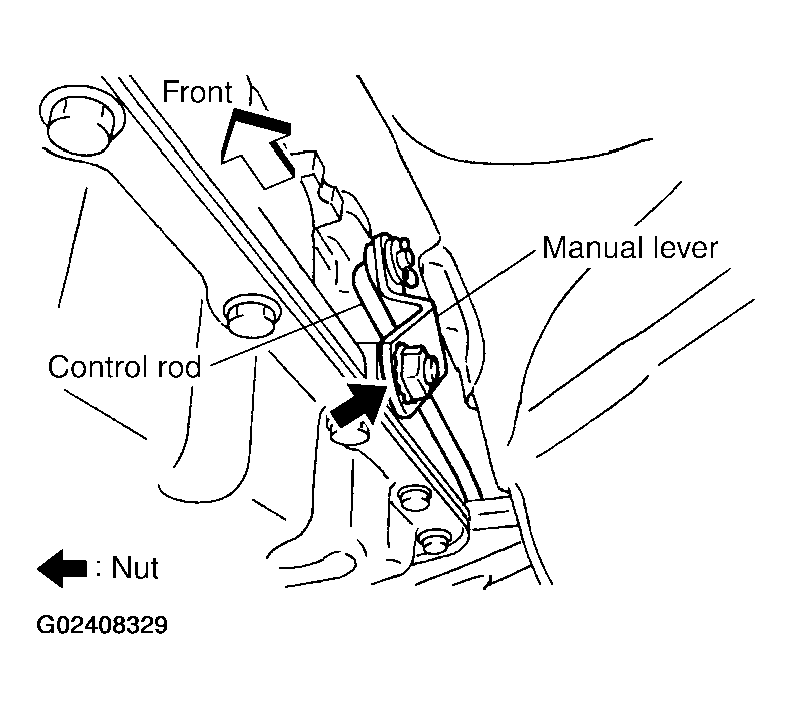

    Fig 1: Removing Manual Lever & Control Rod
    G02408329Courtesy of NISSAN MOTOR CO., U.S.A.
