Blower Unit: Removal

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

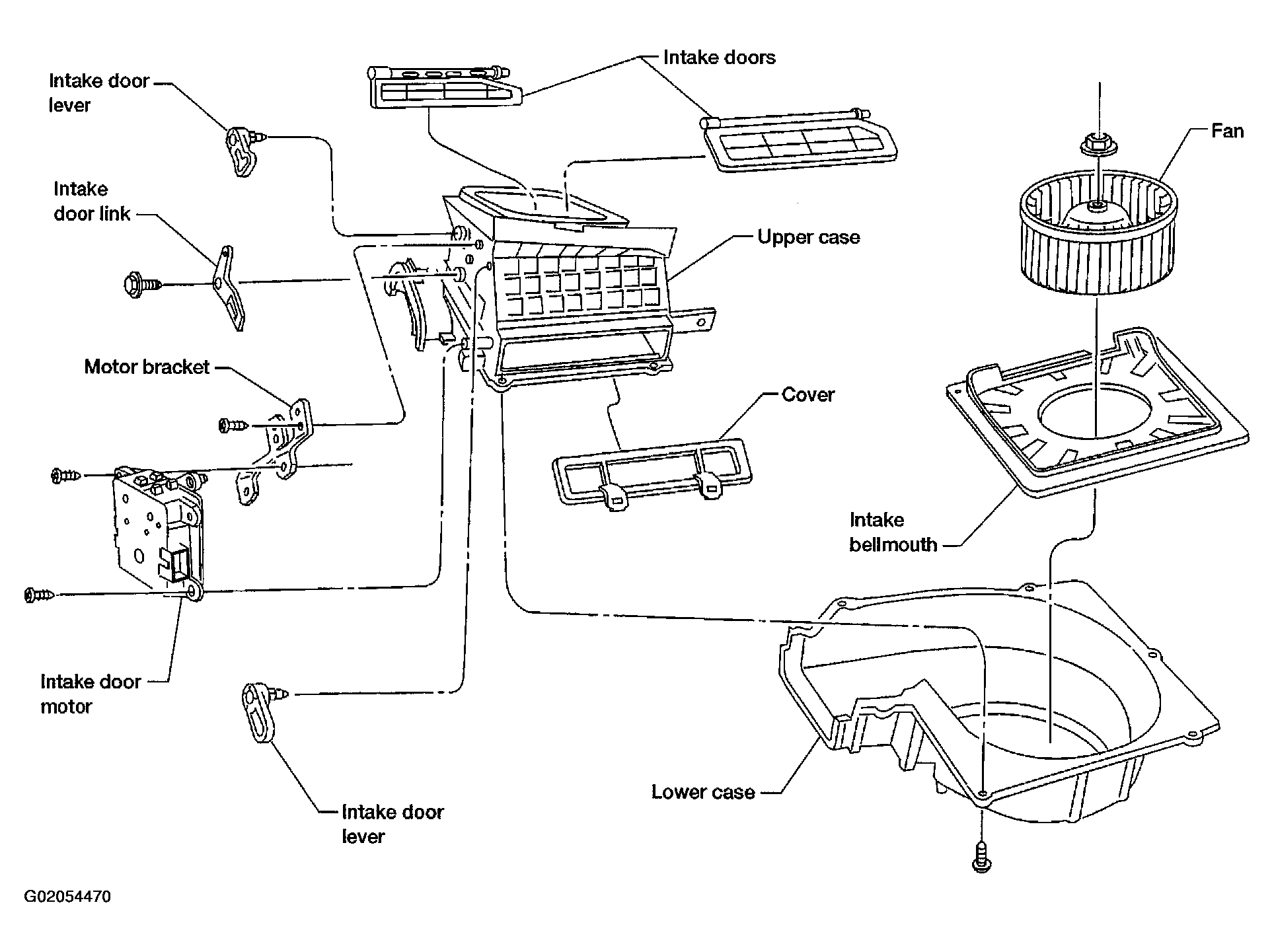

Fig 1: Removing Blower Unit
G02054470Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Discharge the A/C system. Refer to , "DISCHARGING REFRIGERANT ".
  2. Disconnect the two refrigerant lines from the engine compartment.

    Cap the A/C lines to prevent moisture from entering the system.

  3. Remove the glove box and mating trim. .
  4. Remove cooling unit. Refer to REMOVAL .
  5. Disconnect the resistor and blower motor connector.
  6. Remove blower unit.
  7. Remove the three bolts and then remove the motor from the blower case.

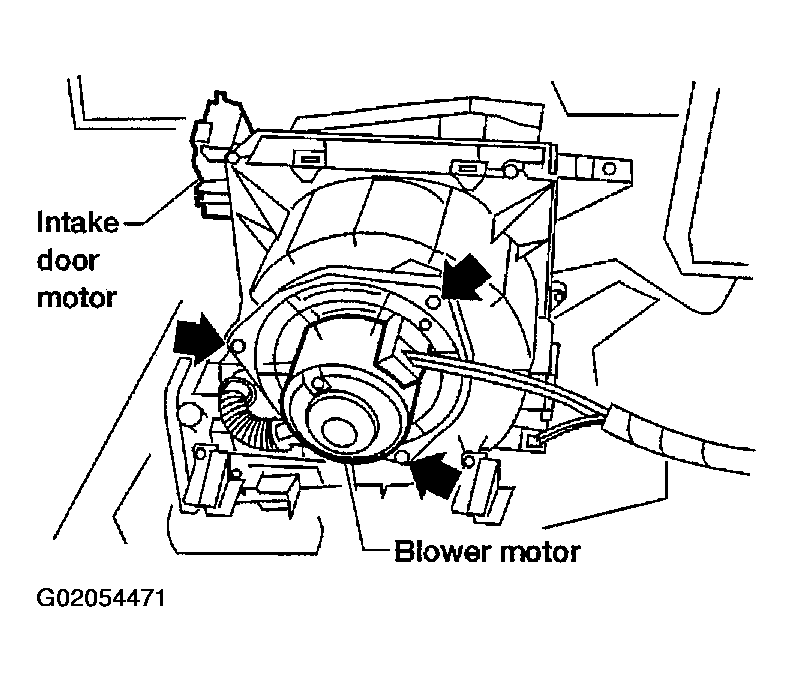

    Fig 2: Removing Bolts And Motor From Blower Case
    G02054471Courtesy of NISSAN MOTOR CO., U.S.A.
