Consult-II Basic Operation

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Display - Touch "START (NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IPDM E/R" on "SELECT SYSTEM" screen.
- If "IPDM E/R" is not displayed, print "SELECT SYSTEM" screen, then refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

  Fig 3: CONSULT-II Display - Touch "IPDM E/R" On "SELECT SYSTEM" Screen
  Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT DIAG MODE" screen.

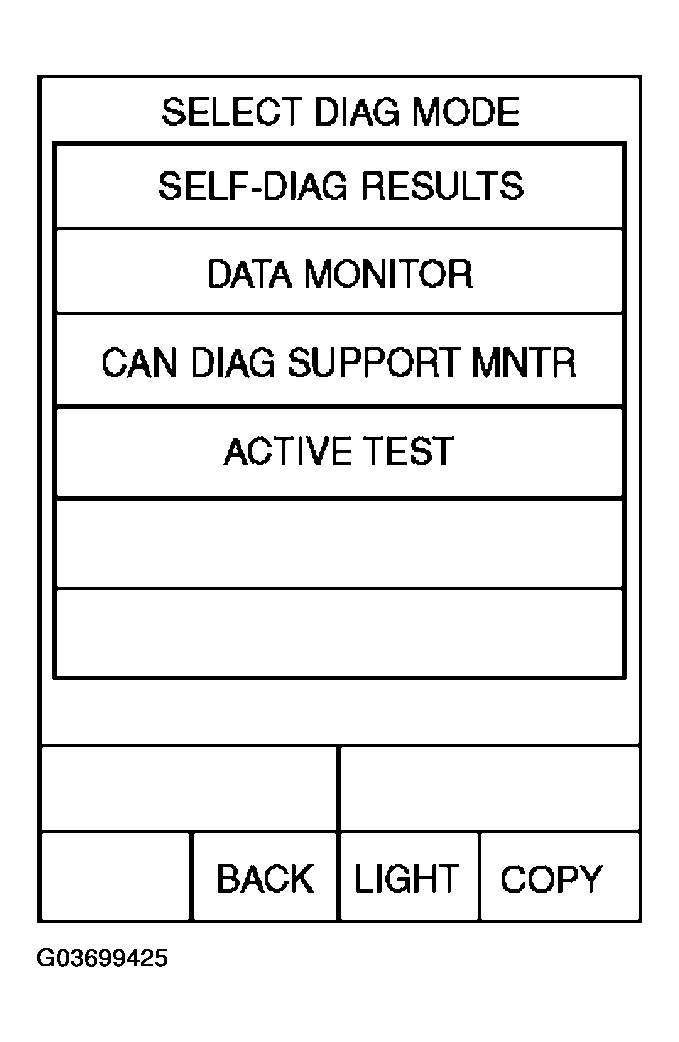

Fig 4: CONSULT-II Display - "SELECT DIAG MODE"
Courtesy of NISSAN MOTOR CO., U.S.A.
