Consult-II Inspection Procedure: Notes

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch "OFF".
Connect "CONSULT-II" and CONSULT-II CONVERTER to the data link connector.

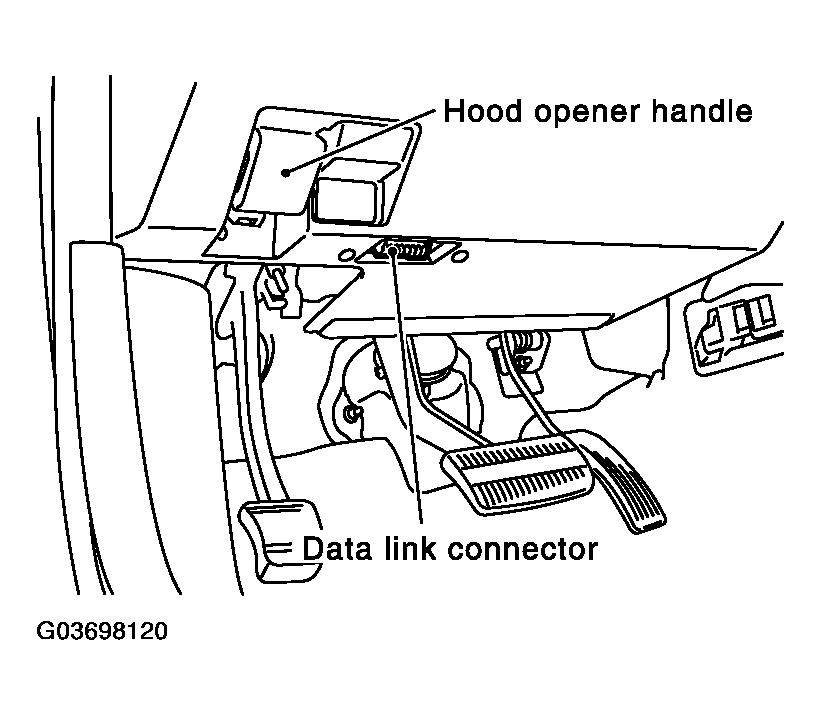

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Diagnosis Procedure Display (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".

Fig 3: CONSULT-II Diagnosis Procedure Display (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

If "BCM" is not indicated, go to CAN COMMUNICATION INSPECTION USING CONSULT-II (SELF-DIAGNOSIS)
Touch "RETAINED PWR".

Fig 4: CONSULT-II Diagnosis Procedure Display (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATE MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

Fig 5: CONSULT-II Diagnosis Procedure Display (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
