COMPONENT LOCATIONS

Component

Location

Anti-Theft ECU

⁽¹⁾

Anti-Theft Horn

⁽¹⁾

Body ECU

⁽¹⁾

Door Courtesy Switch

⁽¹⁾ & ⁽²⁾

Door Lock Assembly

⁽¹⁾ & ⁽²⁾

Engine Hood Courtesy Switch

⁽¹⁾

Luggage Courtesy Switch

⁽¹⁾ & ⁽²⁾

Security Indicator

⁽¹⁾

⁽¹⁾	See Fig 1.

⁽²⁾	See POWER DOOR LOCKS, TRUNK LID & FUEL DOOR RELEASE - ES 300 article under DOOR LOCKS & ANTI-THEFT SYSTEMS in ACCESSORIES & EQUIPMENT.

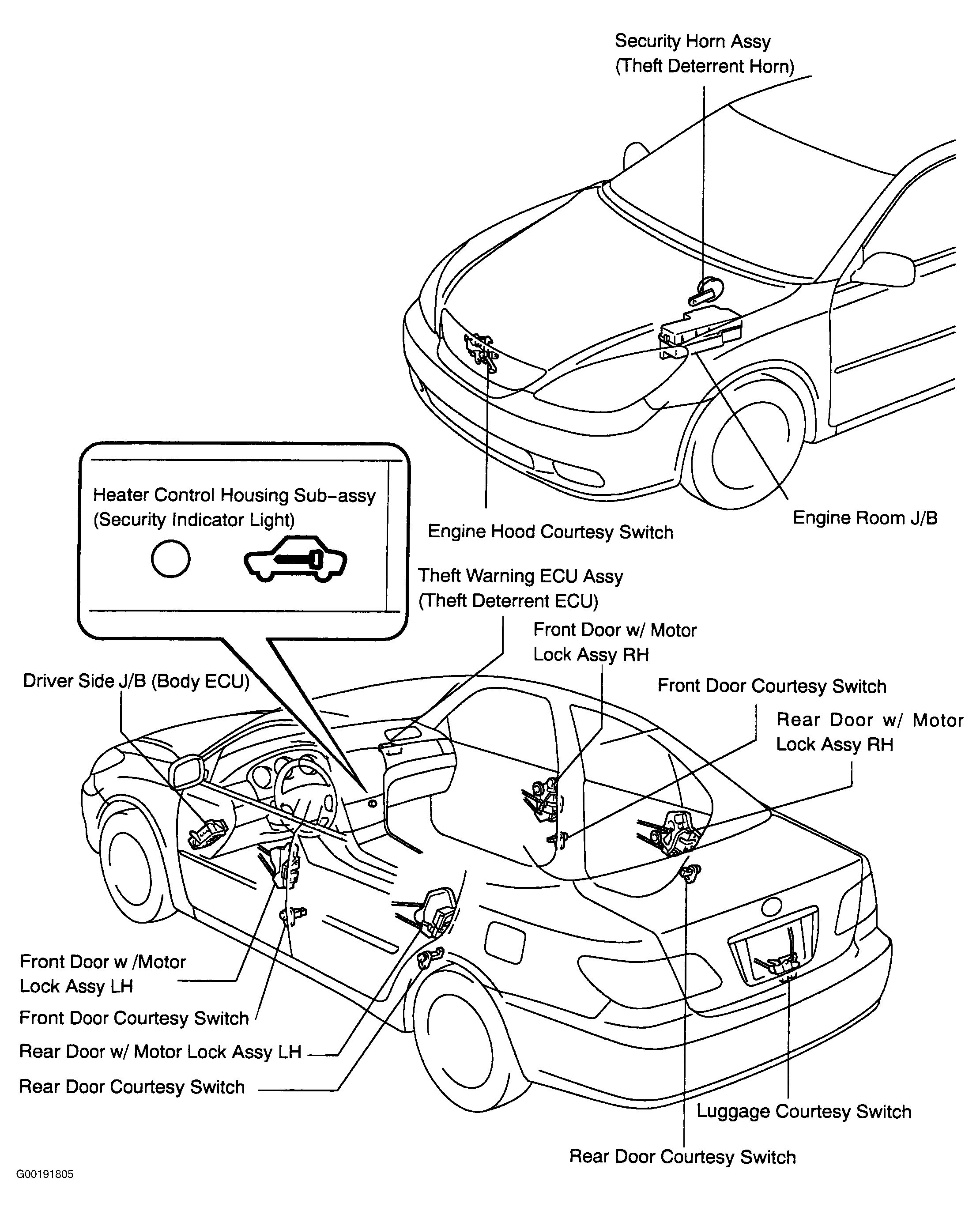

Fig 1: Identifying Anti-Theft System Component Locations
