Consult-II Basic Operation

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector, then turn ignition switch ON.
    Fig 1: Identifying Hood Opener Handle And Data Link Connector
    G03327972Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Displaying CONSULT-II Screen
    G03327973Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

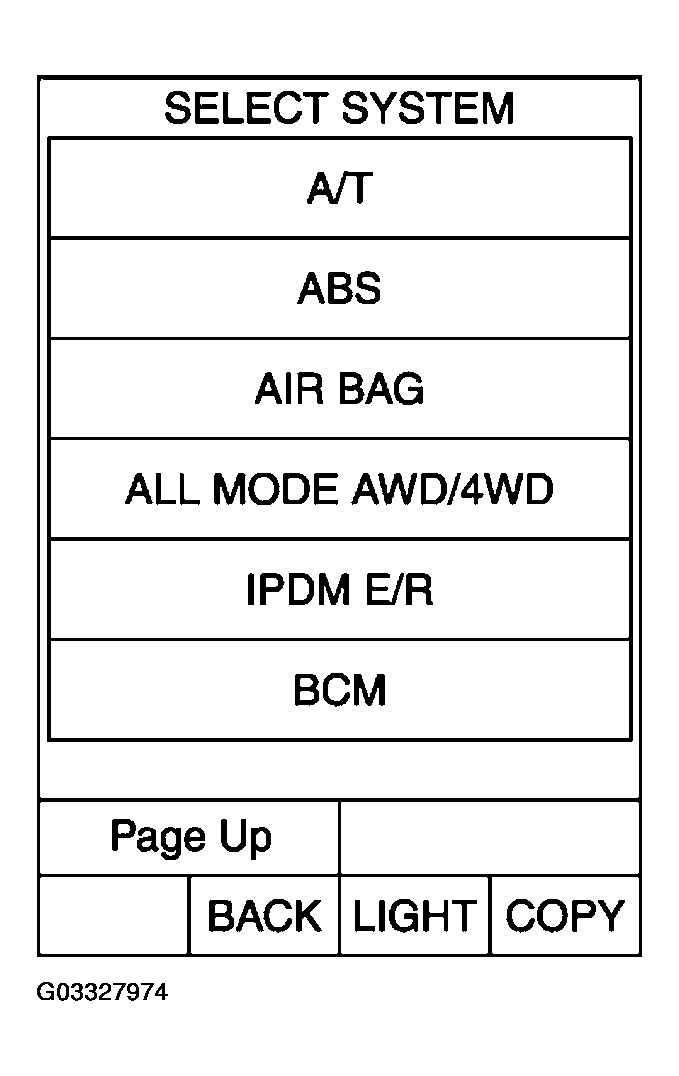

    Fig 3: Displaying "SELECT SYSTEM" Screen
    G03327974Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "HEAD LAMP" on "SELECT TEST ITEM" screen.
    Fig 4: Displaying "SELECT TEST ITEM" Screen
    G03327975Courtesy of NISSAN MOTOR CO., U.S.A.
