Removal and Installation of Display: Removal

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center ventilator. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove screws (4) and remove display.

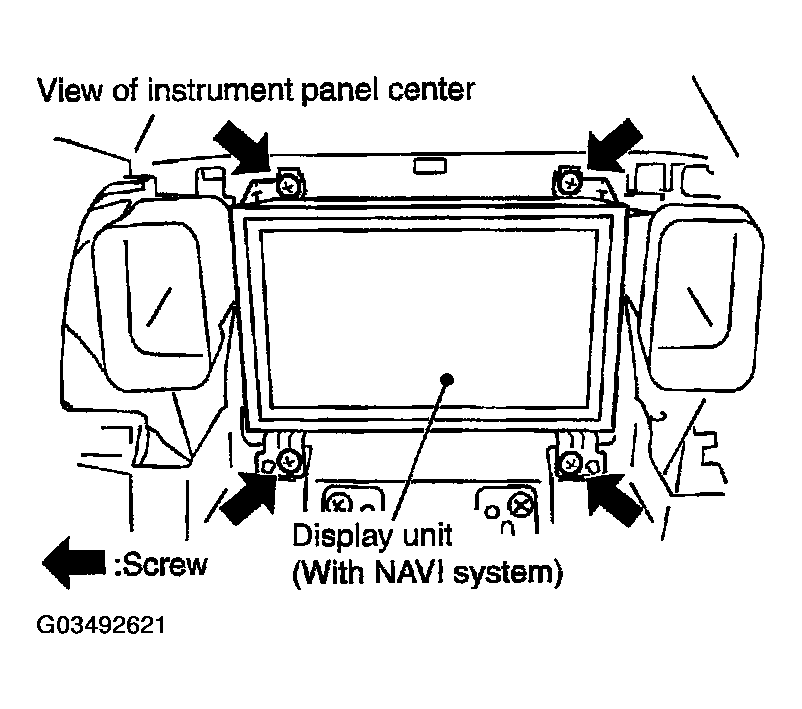

    Fig 1: Removing Display Unit
    G03492621Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (4) and remove bracket.
    Fig 2: Removing Bracket
    G03492622Courtesy of NISSAN MOTOR CO., U.S.A.
