Removal and Installation of Display Unit: Removal

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center ventilator grille. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove screws (4) and remove display unit.

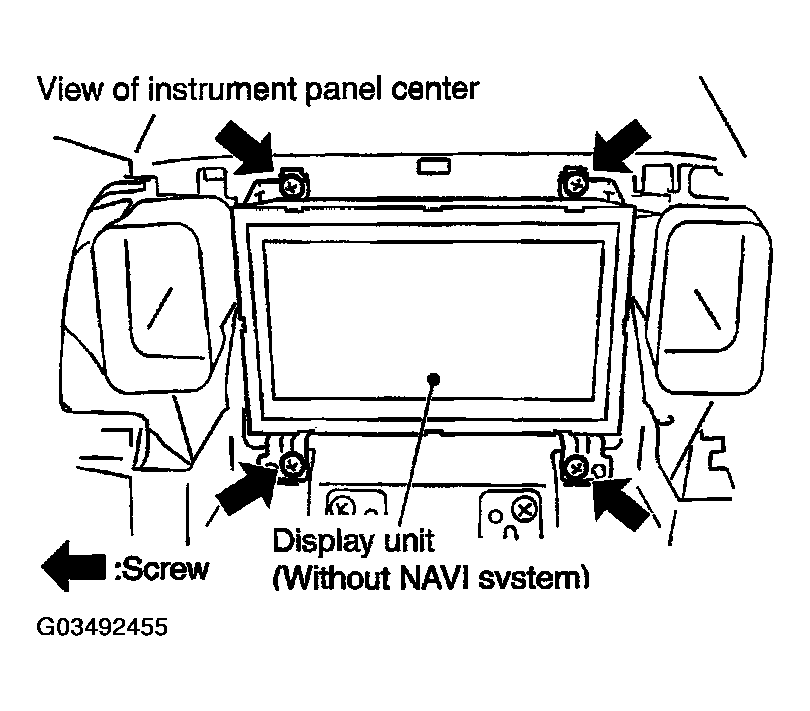

    Fig 1: Removing Display Unit
    G03492455Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (4) and remove bracket.
    Fig 2: Removing Bracket
    G03492456Courtesy of NISSAN MOTOR CO., U.S.A.
