Switches And Their Control Function
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

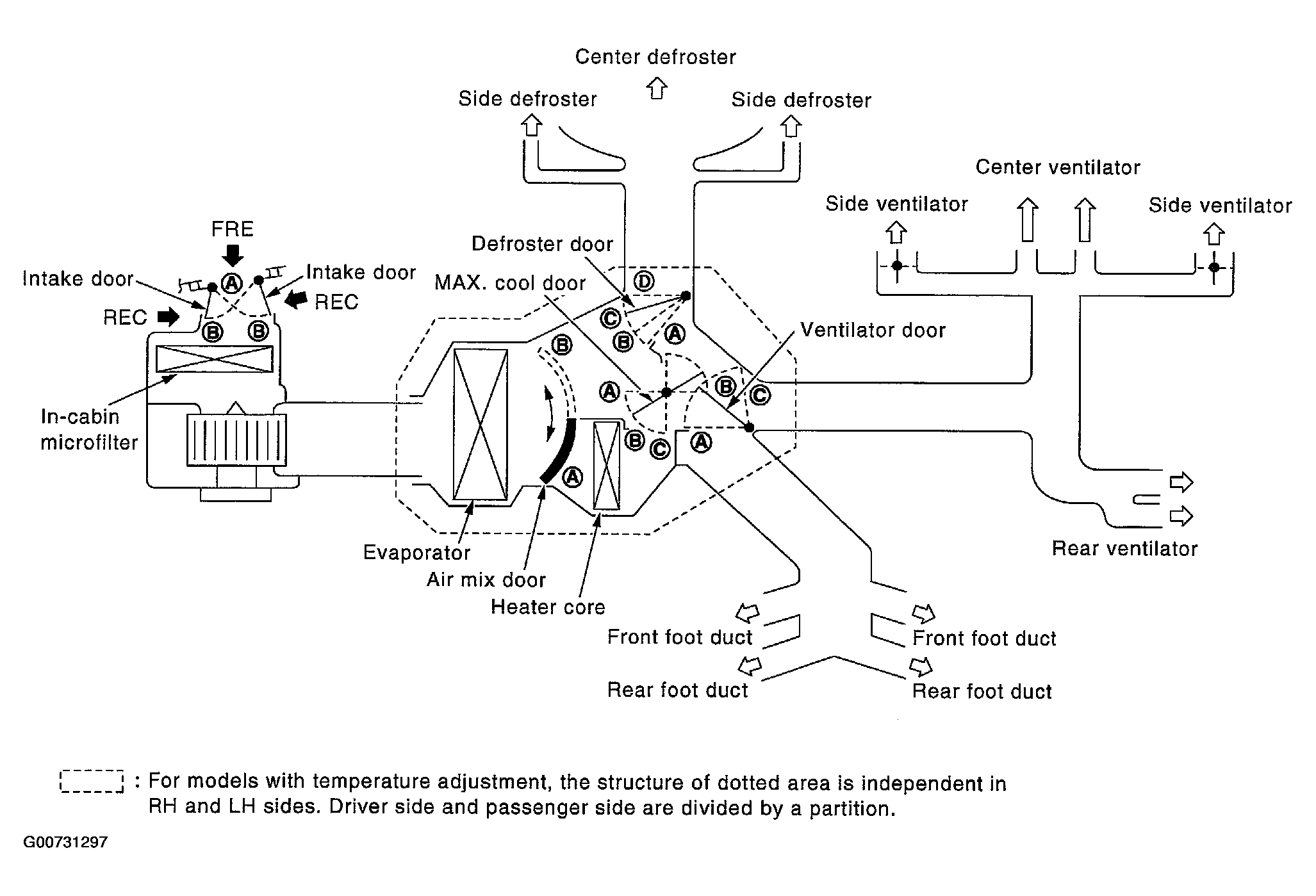

Fig 1: Air Conditioner System Description
Courtesy of NISSAN MOTOR CO., U.S.A.

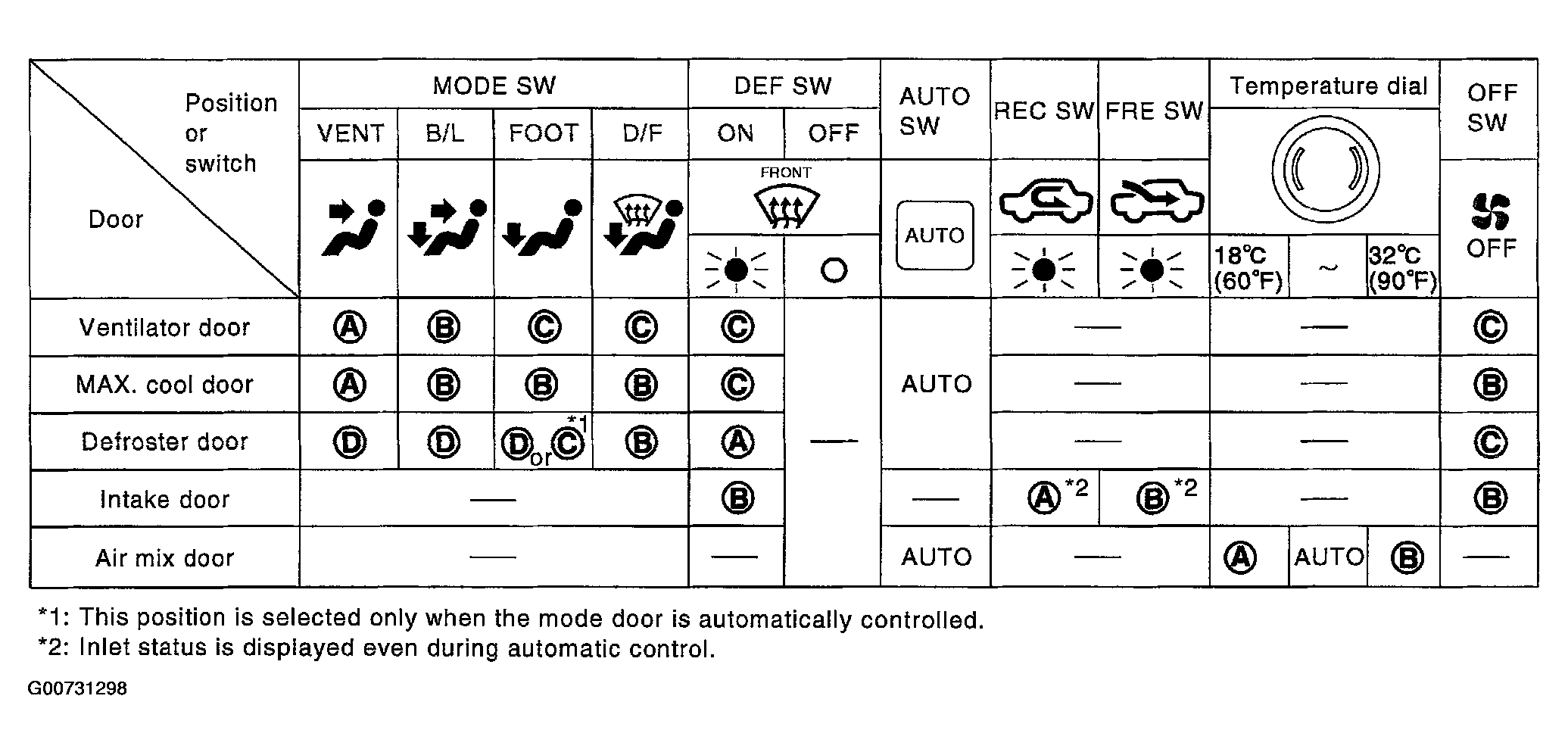

Fig 2: Identifying Switches And Their Control Function Chart
