Bulb Replacement

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear combination lamp mounting bolts.
  2. Pull rear combination lamp to remove from the vehicle.
  3. Turn bulb socket counterclockwise and unlock it.
  4. Remove bulb.
  5. Install in the reverse order of removal.

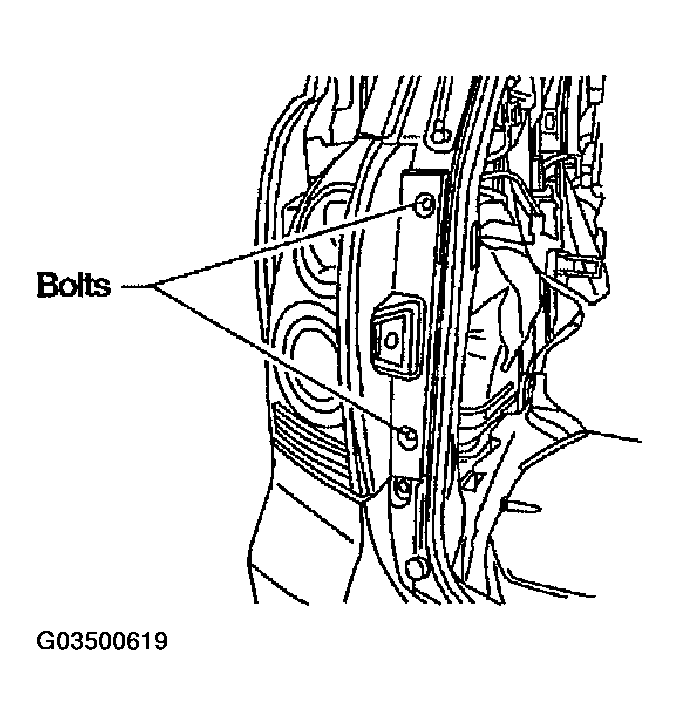

    Fig 1: Removing Bulb
    G03500619Courtesy of NISSAN MOTOR CO., U.S.A.
