Heater Core: Components

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Front Heater and Cooling Unit Assembly

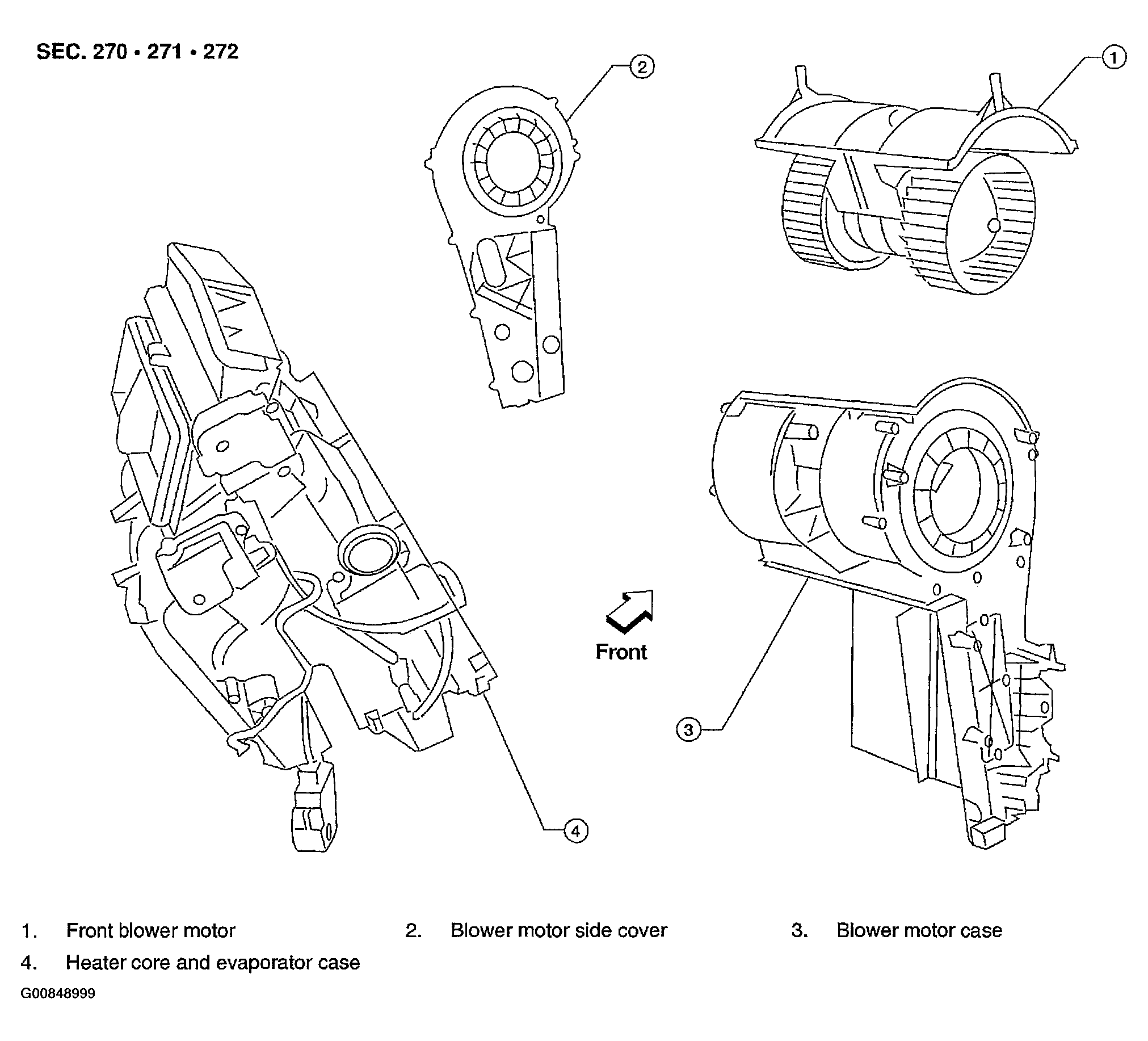

Fig 1: Identifying Front Heater And Cooling Unit Assembly Components
G00848999Courtesy of NISSAN MOTOR CO., U.S.A.

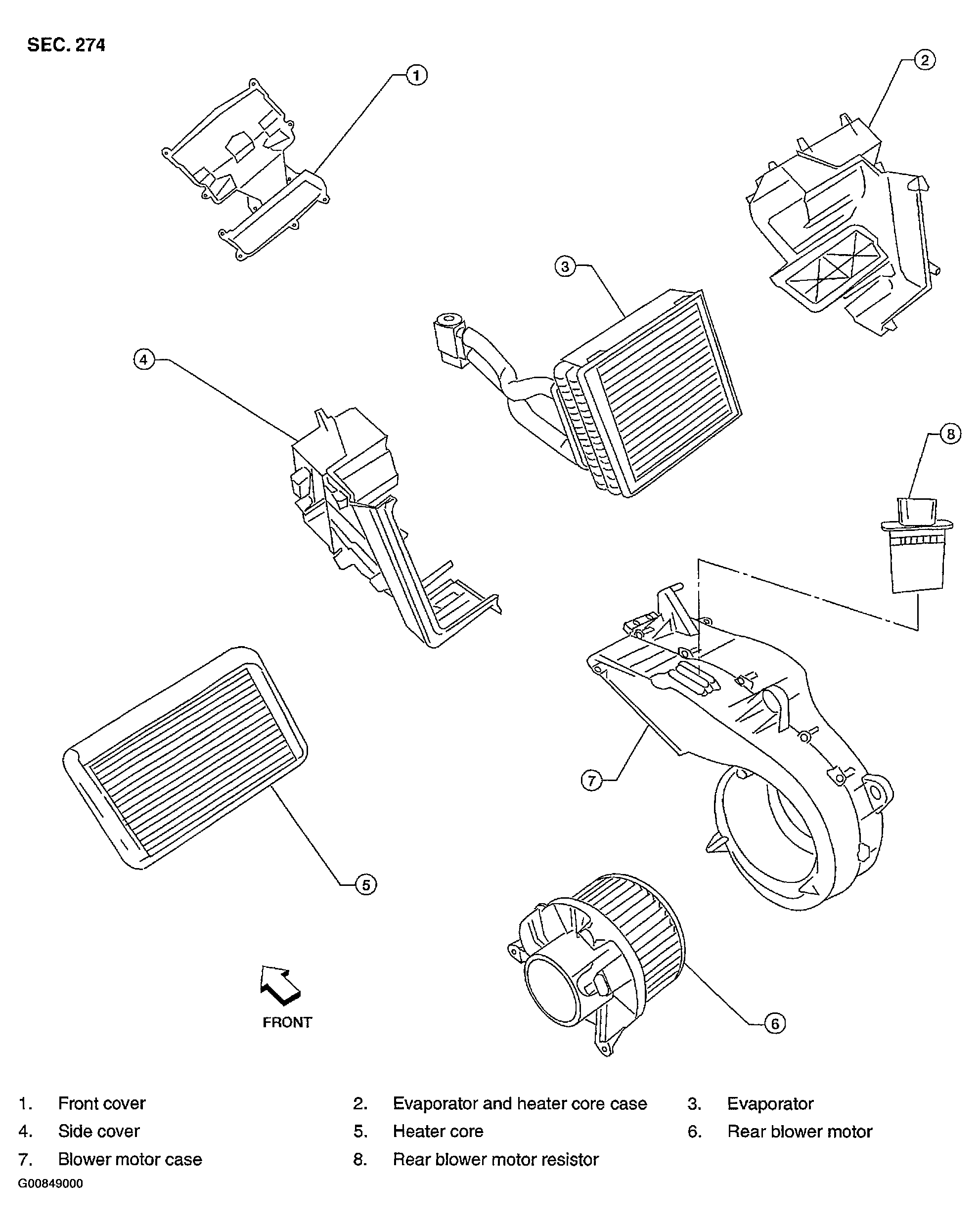

Fig 2: Identifying Rear Heater And Cooling Unit Assembly Components
G00849000Courtesy of NISSAN MOTOR CO., U.S.A.
