Key Interlock Cable: Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Set key interlock cable to key cylinder and install holder.
Turn ignition key to lock position.
Set selector lever to P position.

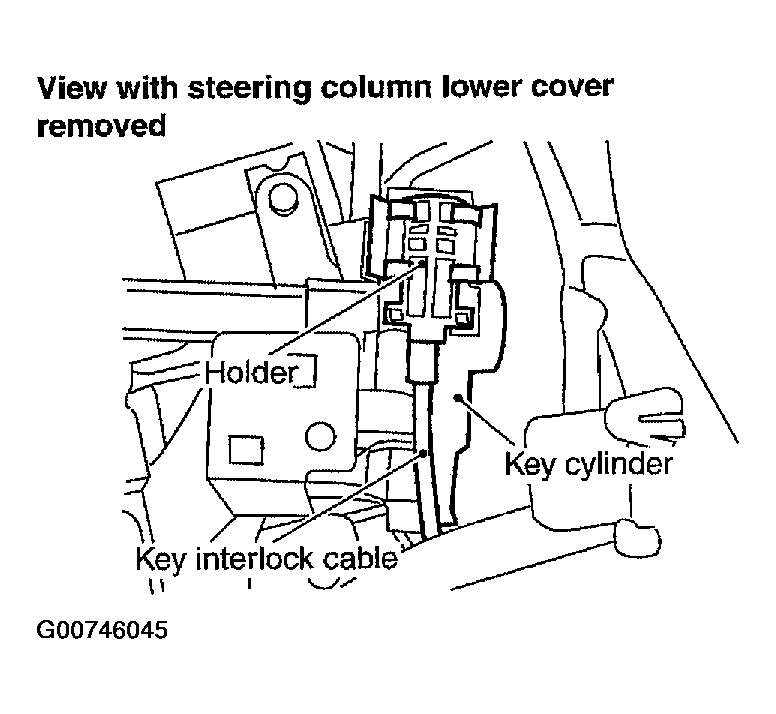

Fig 1: Setting Key Interlock Cable To Key Cylinder
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.
Install casing cap to bracket.
Move slider in order to fix adjuster holder to interlock rod.

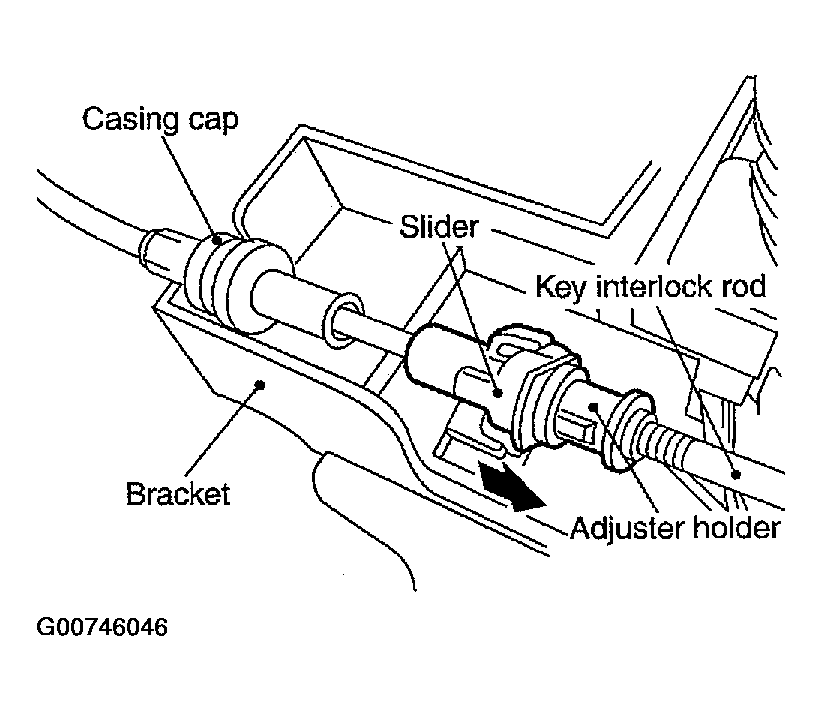

Fig 2: Installing Casing Cap To Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
