Removal and Installation of GPS Antenna: Removal

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to REMOVAL AND INSTALLATION .
  2. Remove center console. Refer to REMOVAL AND INSTALLATION .
  3. Remove console cover (LH). Refer to REMOVAL AND INSTALLATION .
  4. Remove display. Refer to "REMOVAL AND INSTALLATION OF DISPLAY  ".
  5. Disengaged the clips (4) to separate antenna feeder.

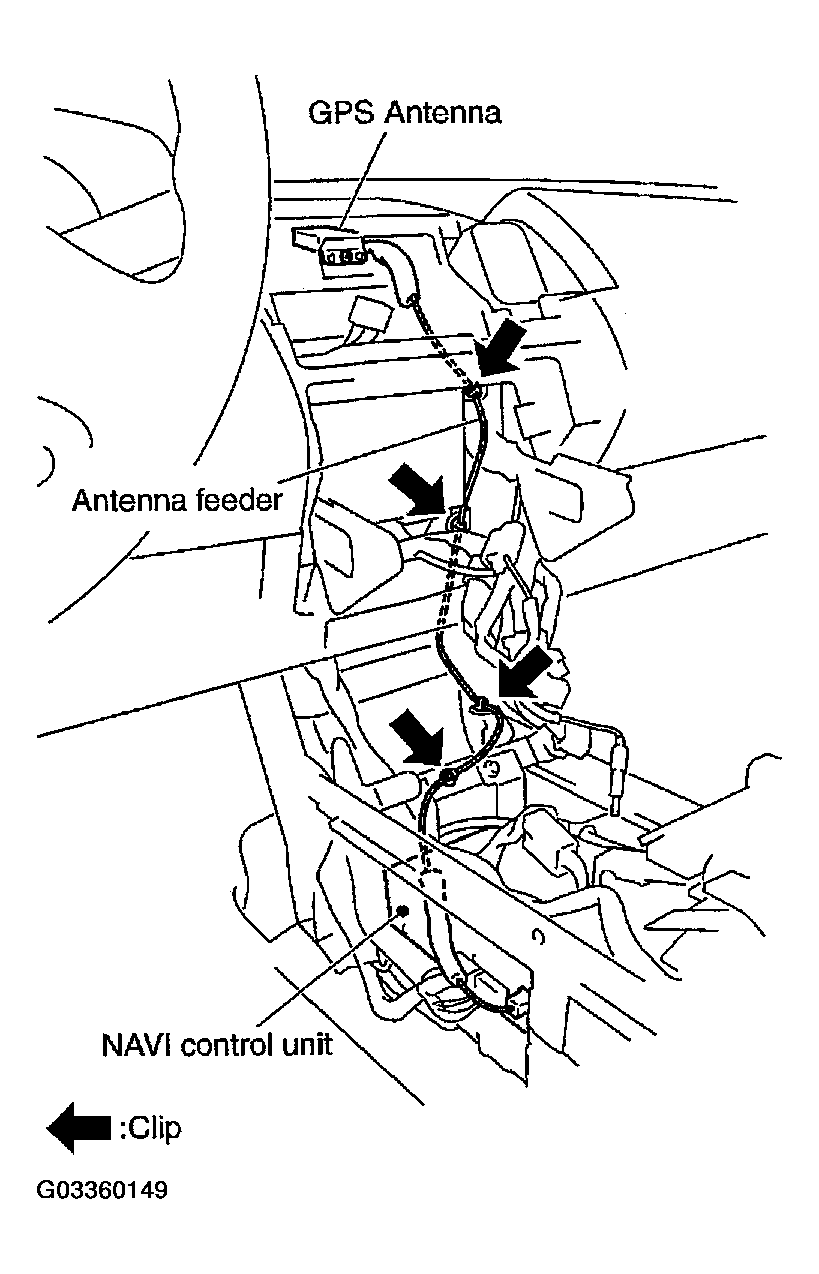

    Fig 1: Removing Antenna Feeder
    G03360149Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove screw and remove GPS antenna.

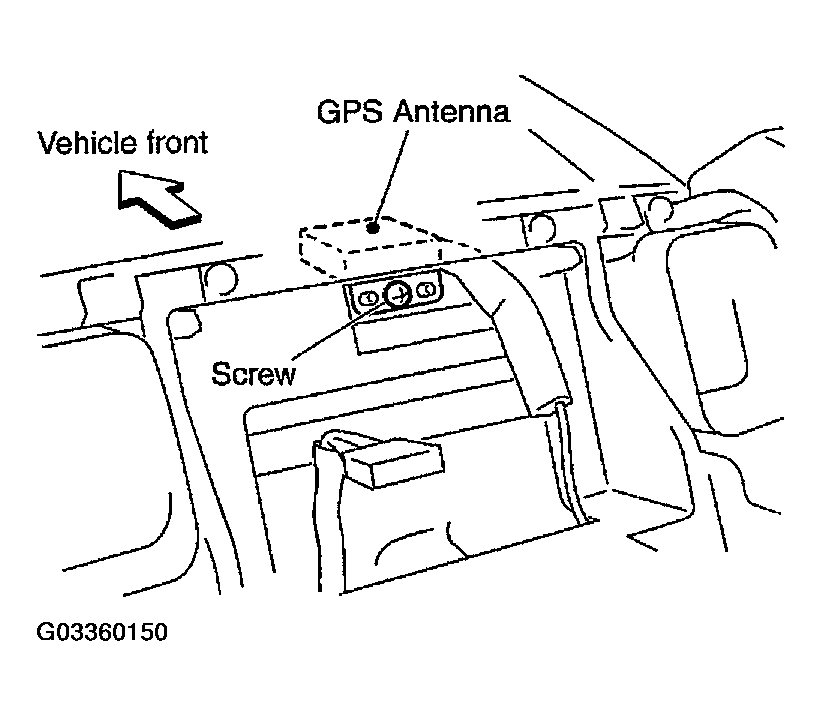

    Fig 2: Removing GPS Antenna
    G03360150Courtesy of NISSAN MOTOR CO., U.S.A.
