Door Mirror Remote Control Switch (Changeover Switch) Circuit Check

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    Check the operation on "MIR CHNG SW - R" or "MIR CHNG SW-L" in the DATA MONITOR.

    MONITOR ITEM

    Monitor item [OPERATION or UNIT] Contents
    MIR CHNG S W-R "ON/OFF" ON/OFF status judged from the door mirror remote control switch (switching to RIGHT) signal is displayed.
    MIR CHNG S W-L "ON/OFF" ON/OFF status judged from the door mirror remote control switch (switching to LEFT) signal is displayed.

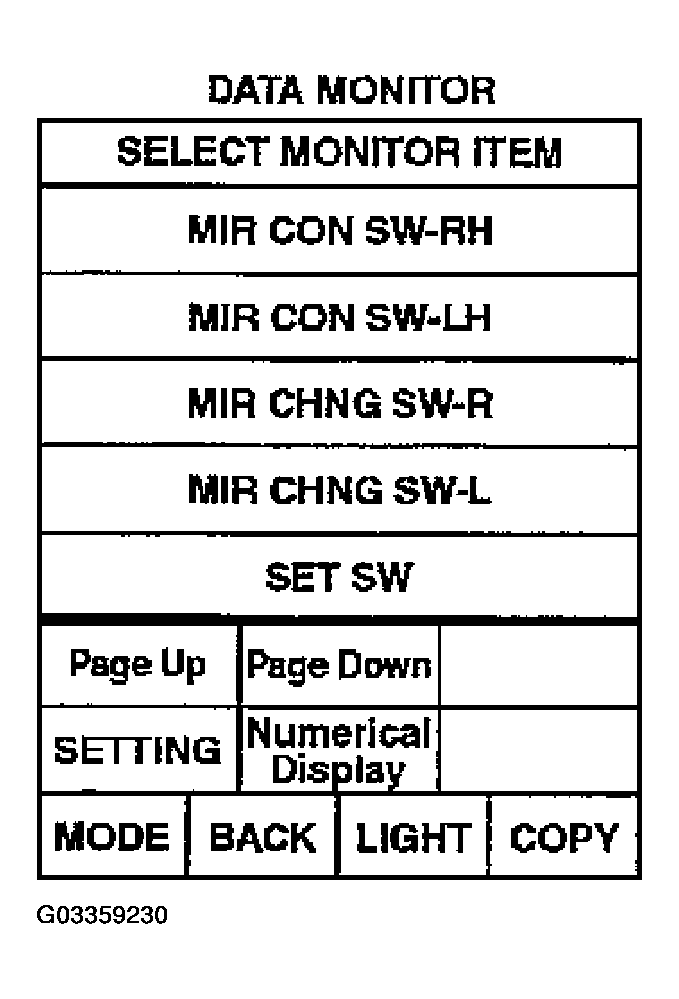

    Fig 1: Displaying "MIR CHNG SW - R, MIR CHNG SW-L" in DATA MONITOR
    G03359230Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ACC.
    2. Check voltage between automatic drive positioner control unit connector and ground.
      TERMINALS (WIRE COLOR)

      Connector Terminals (Wire color) Condition Voltage (V) (Approx)
      (+) (-)
      M19 2 (L/W) Ground Changeover switch RIGHT position 0
      Changeover switch neutral position 5
      18 (BR/Y) Changeover switch LEFT position 0
      Changeover switch neutral position 5
      Fig 2: Checking Voltage Between Connector And Ground
      G03359231Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Door mirror remote control switch (changeover switch) is OK.
    2. NG : GO TO 2.
  2. CHECK DOOR MIRROR REMOTE CONTROL SWITCH CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit and door mirror remote control switch connector.
    3. Check continuity between automatic drive positioner control unit connector M19 terminal 2 (L/W), 18 (BR/Y) and door mirror remote control switch connector M66 terminal 5 (L/W), 6 (BR/Y).
      1. 2 (L/W) - 5 (L/W):Continuity should exist.
      2. 18 (BR/Y) - 2 (BR/Y):Continuity should exist.
    4. Check continuity between automatic drive positioner control unit connector M19 terminal 2 (L/W), 18 (BR/Y) and ground.
      1. 2 (L/W) - : Continuity should not exist.
      2. 18 (BR/Y)-Ground: Continuity should not exist.

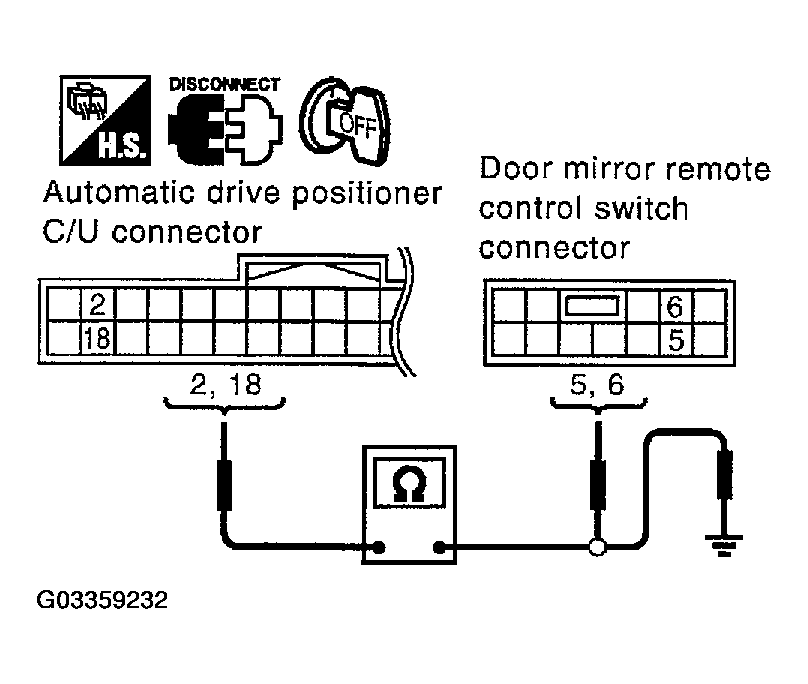

      Fig 3: Checking Continuity Between Connector M19 Terminal 2, 18 And Door Mirror Remote Control Switch Connector M66 Terminal 5, 6, And Between Connector M19 Terminal 2, 18 And Ground
      G03359232Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 3.
    2. NG : Repair or replace harness between automatic drive positioner control unit and door remote control switch.
  3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)

    Check continuity between door mirror remote control switch as follows.

    TERMINALS (WIRE COLOR)

    Connector Terminals (Wire color) Condition Voltage (V) (Approx)
    (+) (-)
    M66 5 7 Changeover switch RIGHT position YES
    Changeover switch neutral position NO
    6 Changeover switch LEFT position YES
    Changeover switch neutral position NO

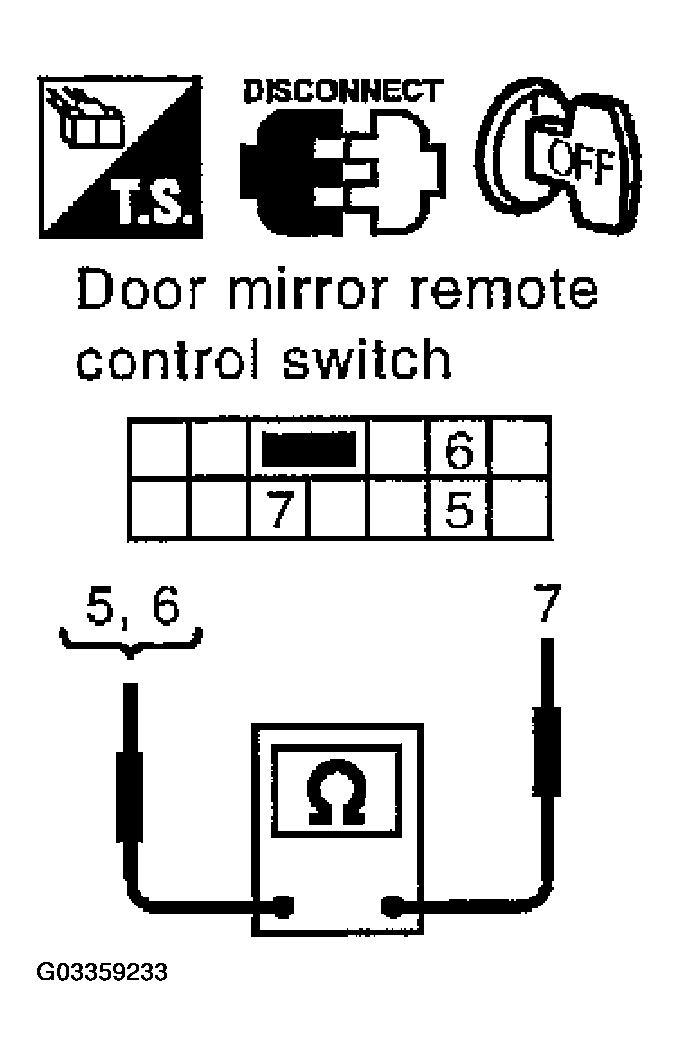

    Fig 4: Checking Continuity Between Door Mirror Remote Control Switch Terminals 5, 6 And 7
    G03359233Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Check the condition of the harness and the connector.
    2. NG : Replace door mirror remote control switch.
