Wheel Hub: Components

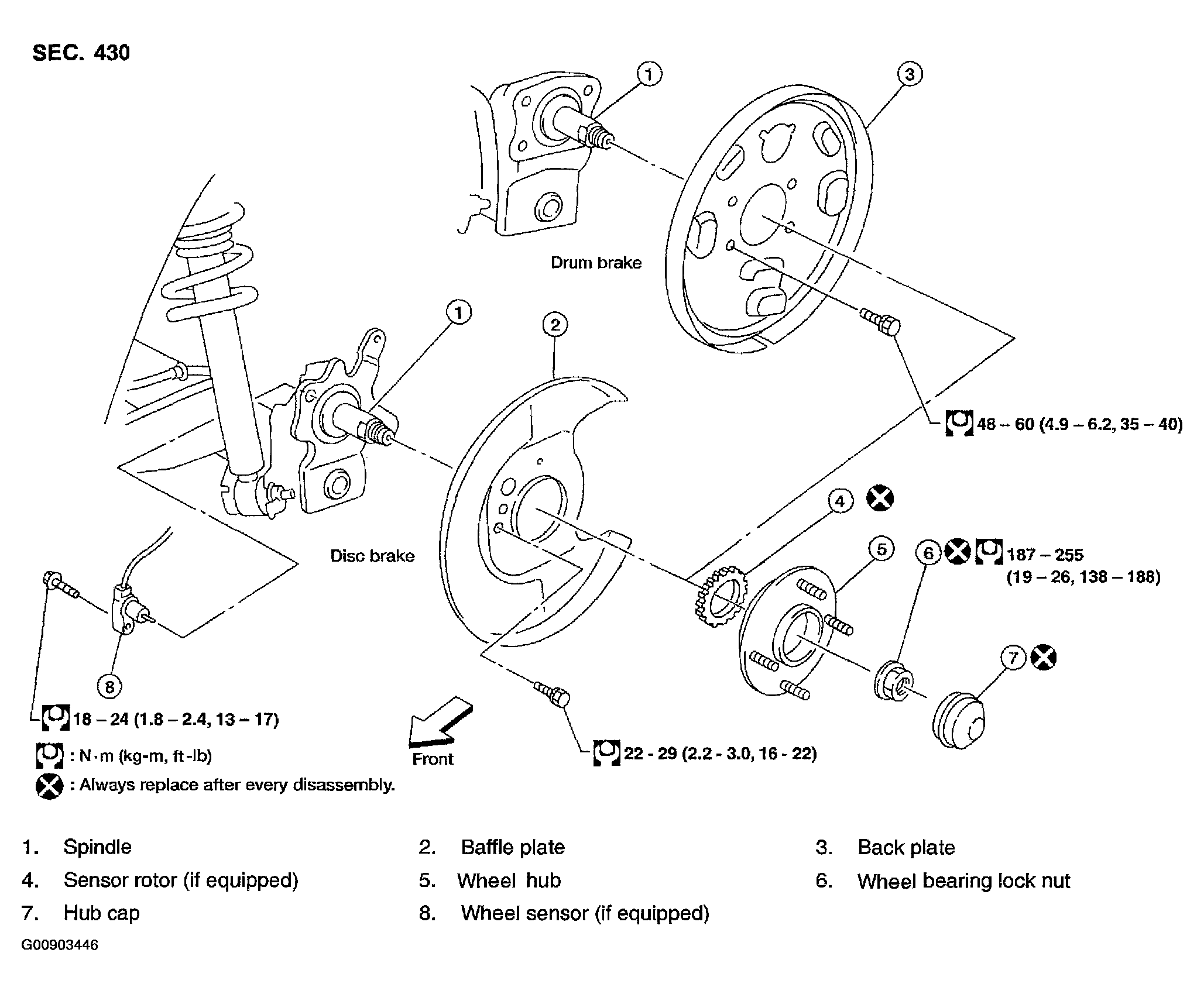

Fig 1: Wheel Hub Replacement Components With Torque Specifications
G00903446Courtesy of NISSAN MOTOR CO., U.S.A.
