Removal and Installation: Notes

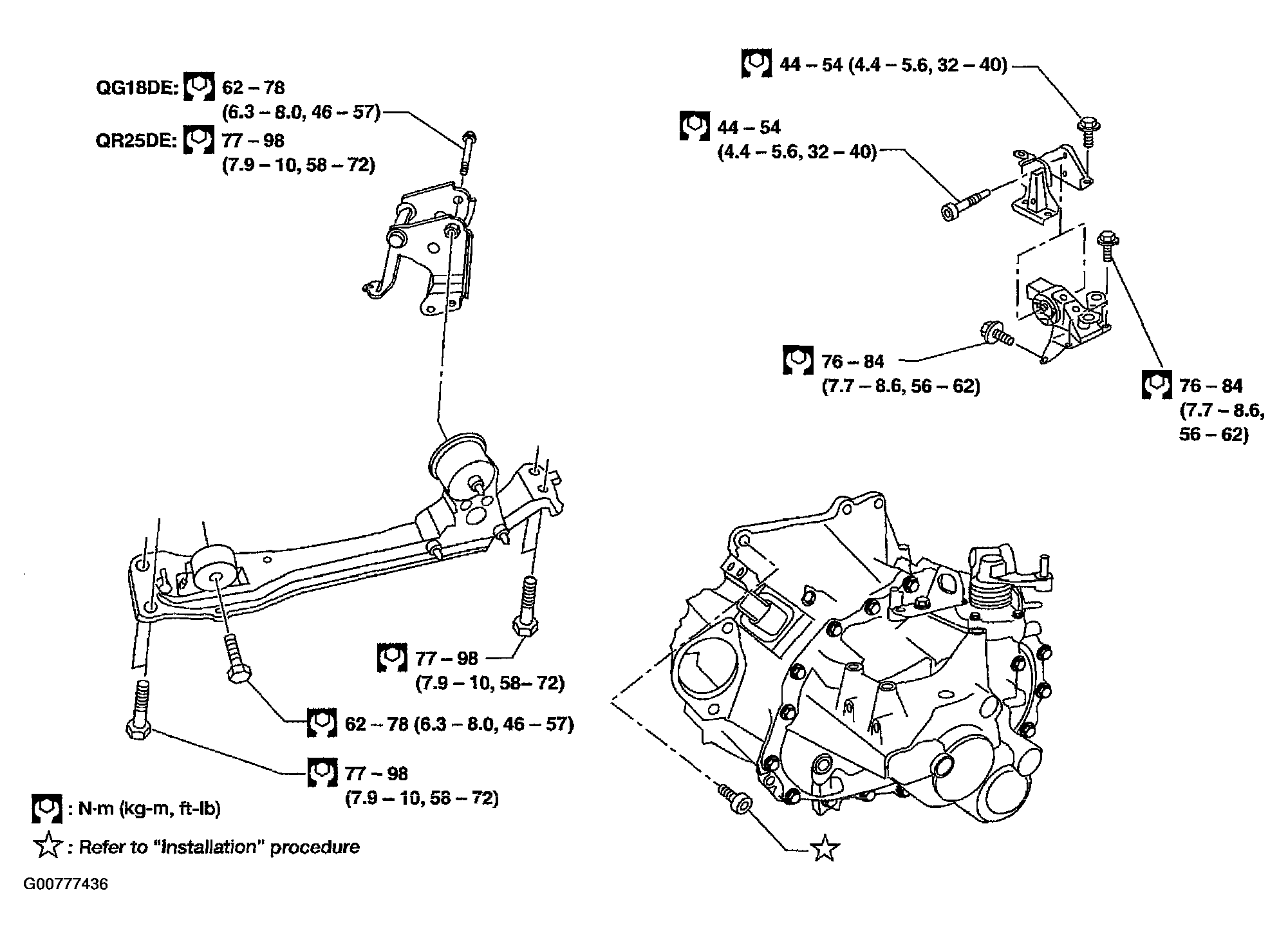

Fig 1: Removal And Installation Of Transaxle Assembly And Tightening Torques
G00777436Courtesy of NISSAN MOTOR CO., U.S.A.
