Operating Cylinder: Components

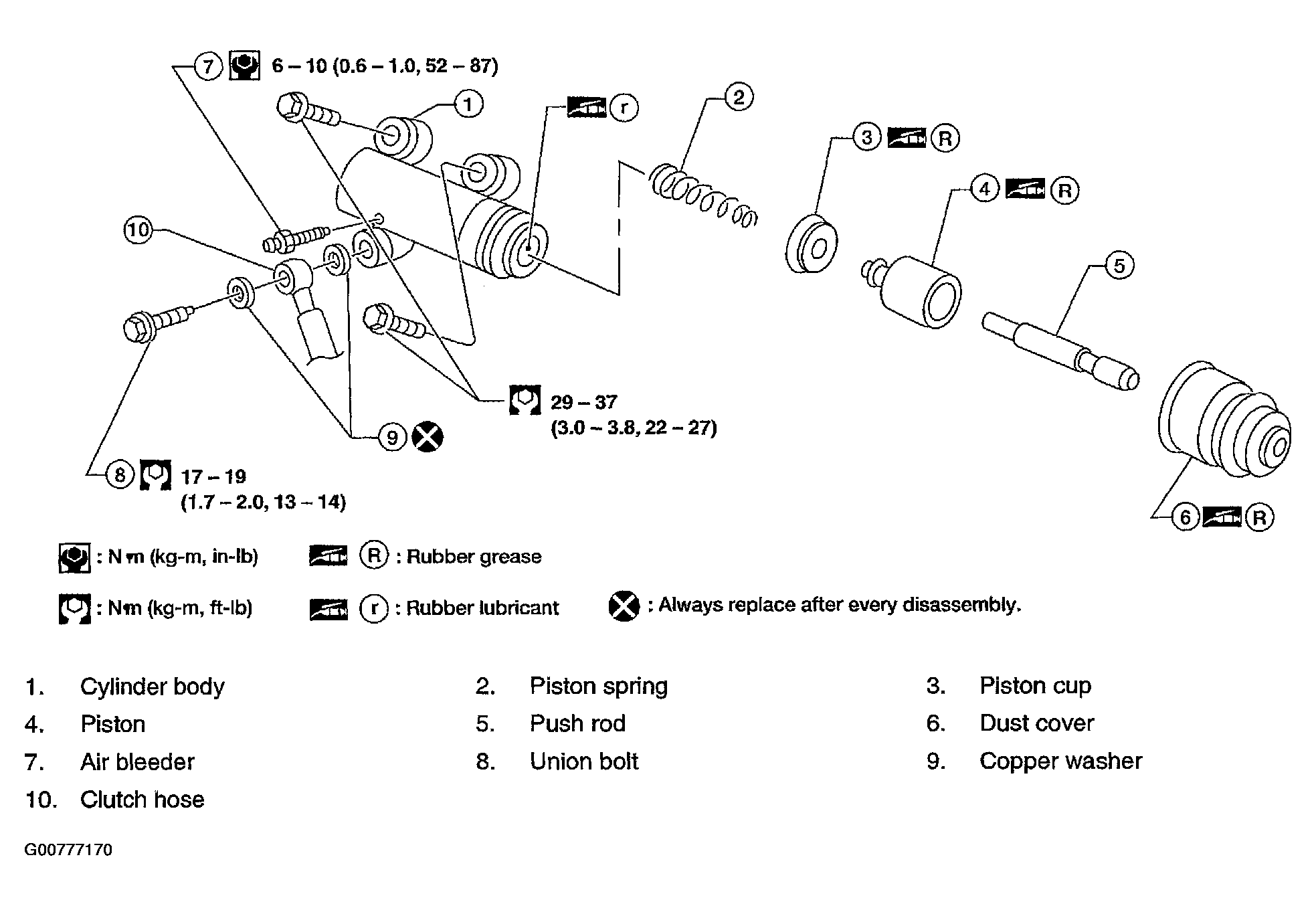

Fig 1: Identifying Operating Cylinder Components

G00777170

Courtesy of NISSAN MOTOR CO., U.S.A.
